Dornier PTV 2/S, HTV 2/S, HTV M/S, HTV M/E, AWSE 2/J, LWV 4/J, LWV 2/E2/J

a) - e + j) = SOLD

Item#005576

35 sets DORNIER WEAVING for technical weaving – GLASS-FIBRE, comprising:

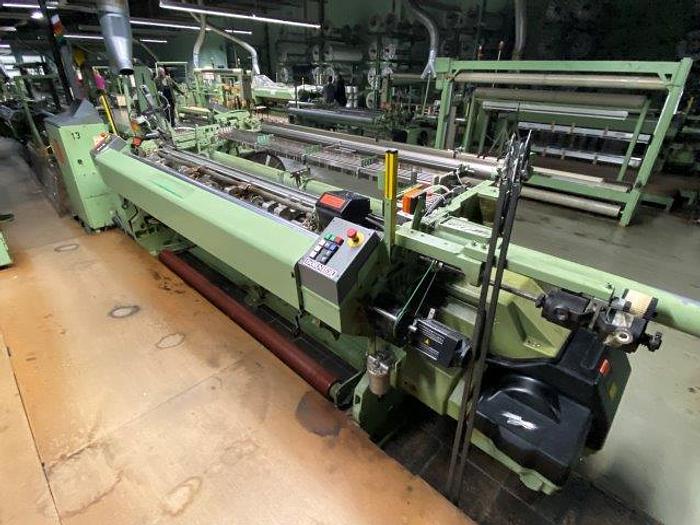

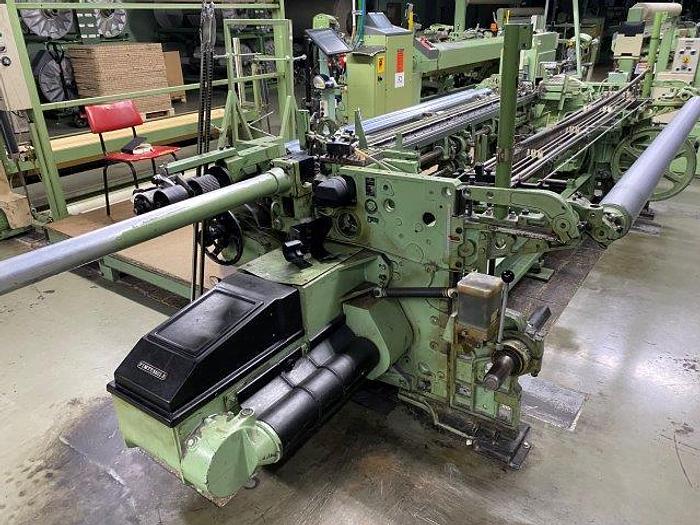

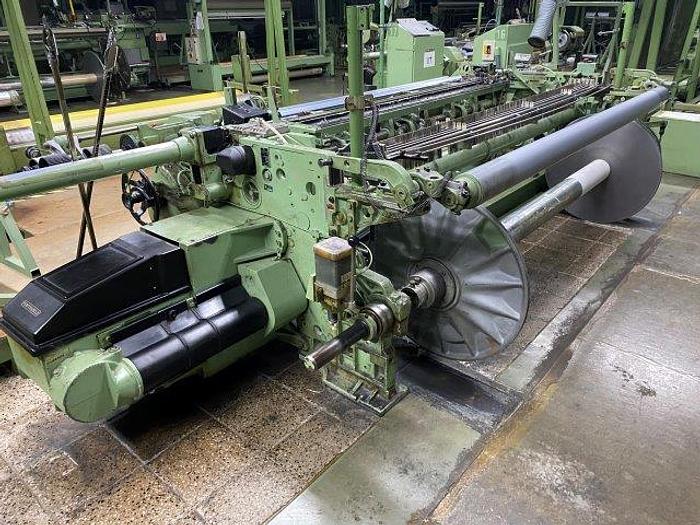

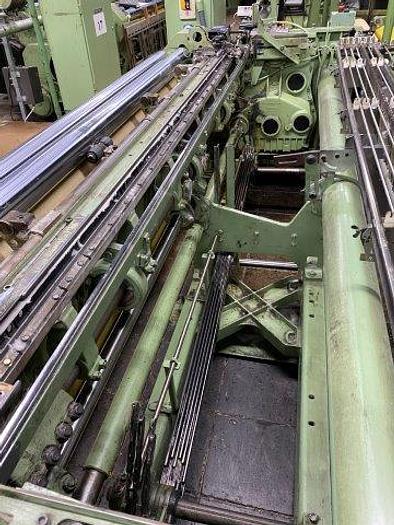

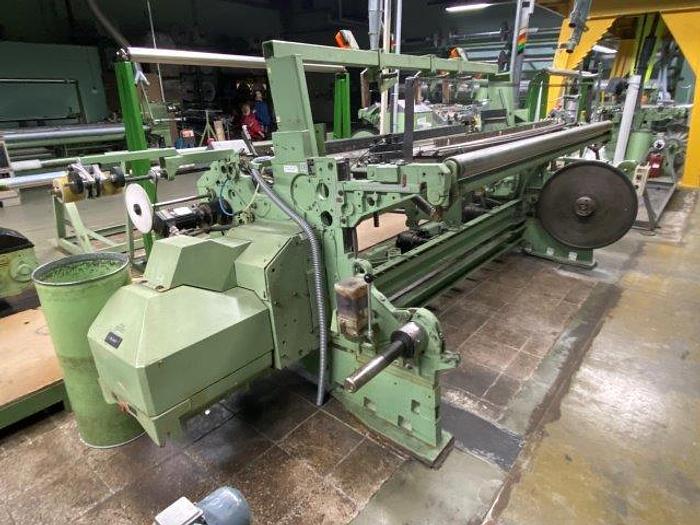

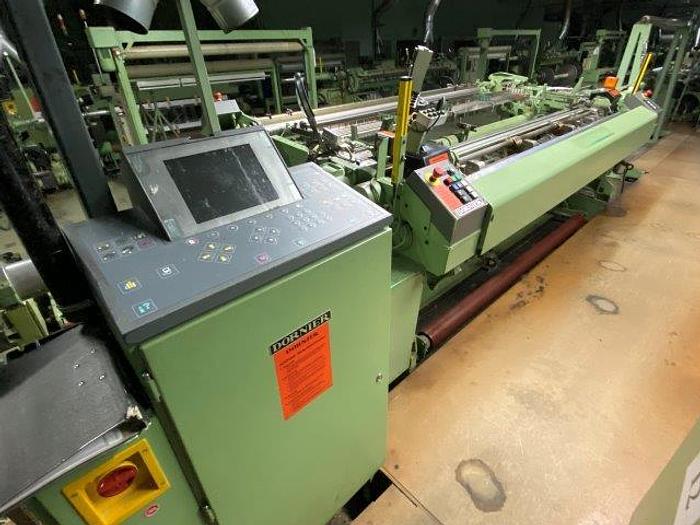

a)    1 DORNIER RAPIER LOOM, type PTV 2/S – 240 – AT2

year 2003, mach. No. 45.692,

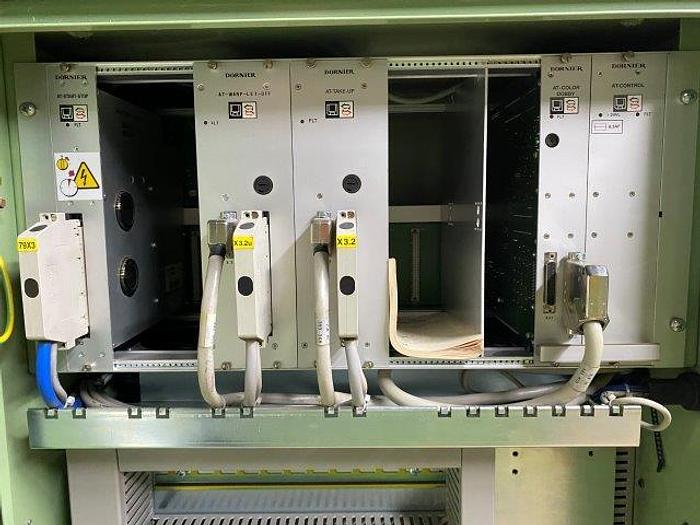

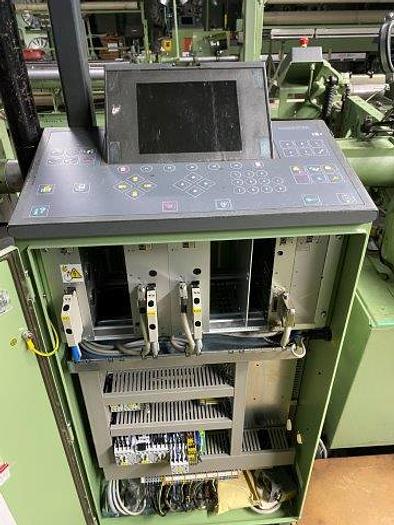

nominal width 240 cm, AT2 dialog panel,

4 weft colors capacity (equipped with 8 plugs for ECS),

Stäubli electronic dobby 2670 – equipped with 20 shafts,

ECS – electronic color selector,

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia. 1.000 mm,

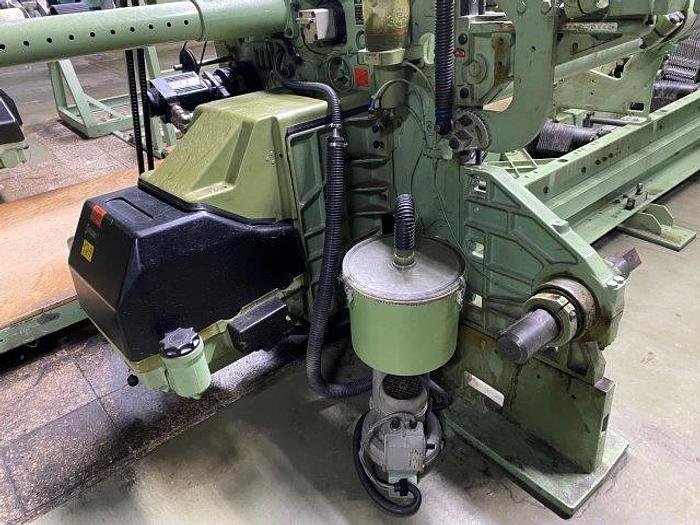

Air-guided rapier system, Inverter, suction device

with accessories*

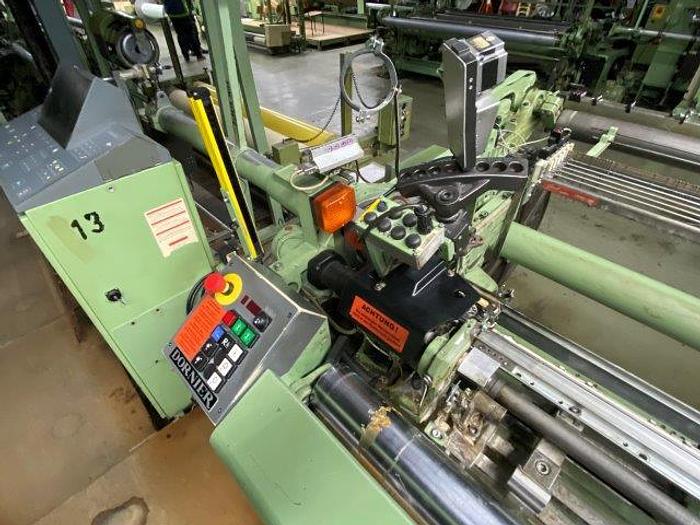

Int. No. 13

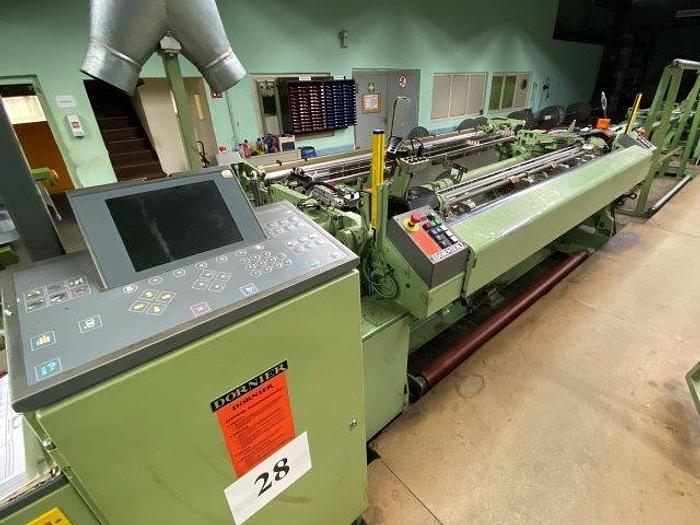

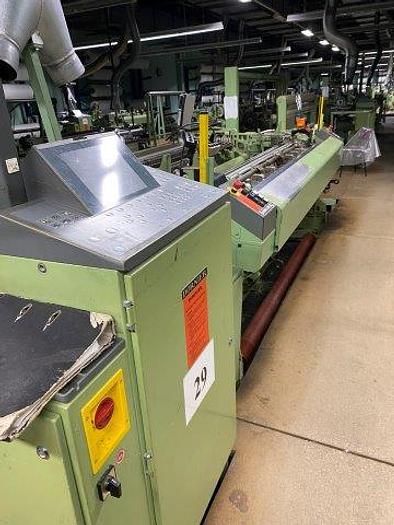

b)    05 DORNIER RAPIER LOOMS, type HTV 2/S – 240 – AT2

year 2000, mach. nos. 42.899-42.903 (5),

nominal width 240 cm, AT2 dialog panel,

4 weft colors capacity (equipped with 8 plugs for ECS),

Stäubli electronic dobby 2668/2 – equipped with 12/12 shafts,

ECS – electronic color selector,

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia.1000 mm,

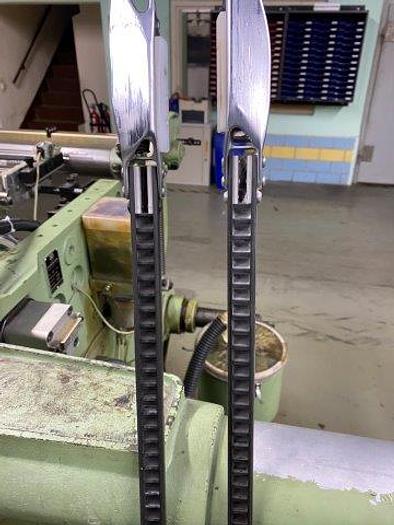

Air-guided rapier system, with accessories*

Int. No. 28, 29, 30, 31, 32

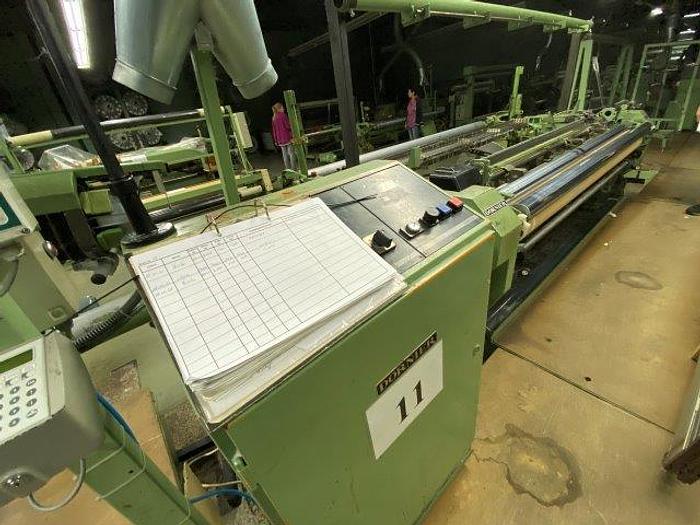

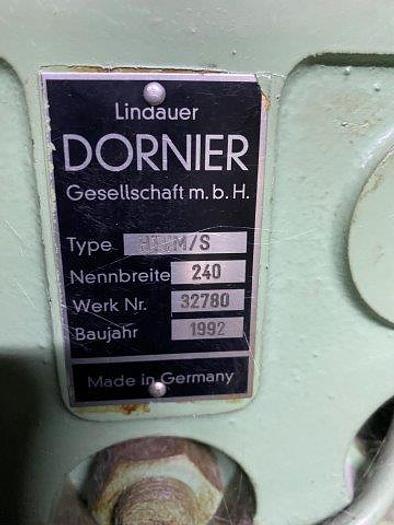

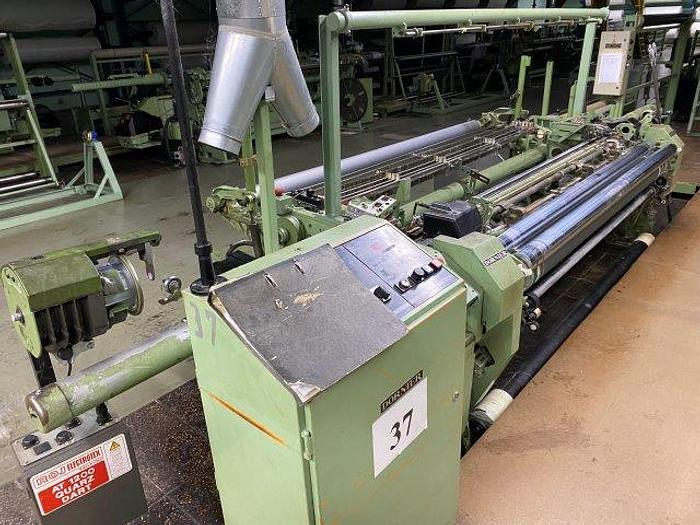

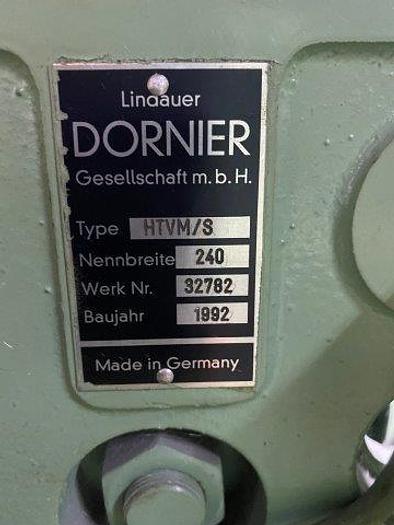

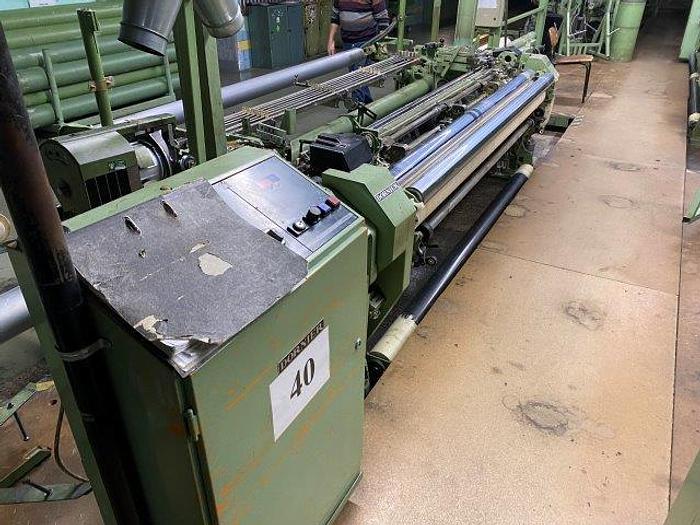

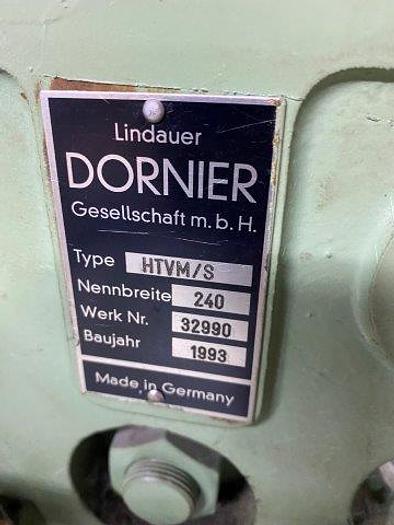

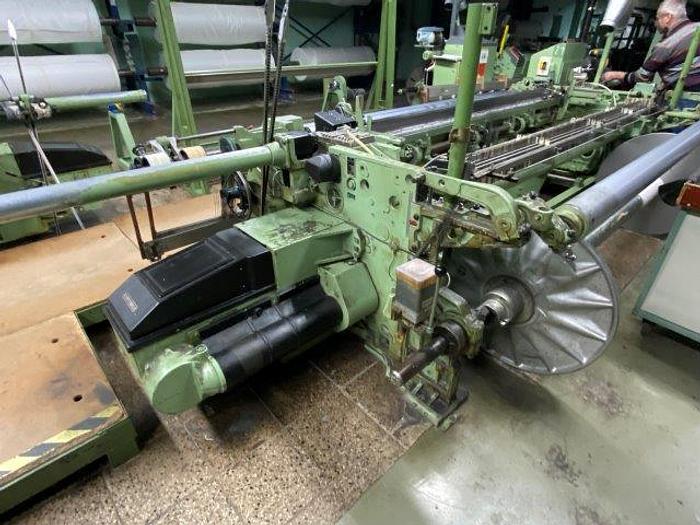

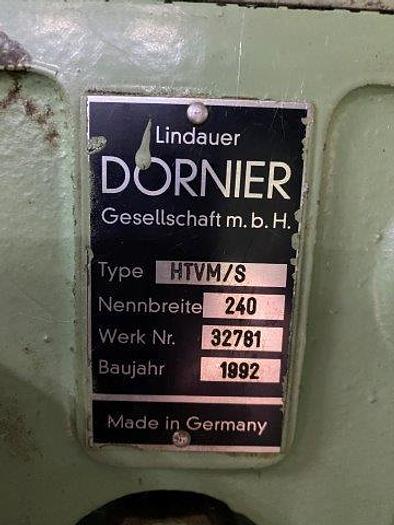

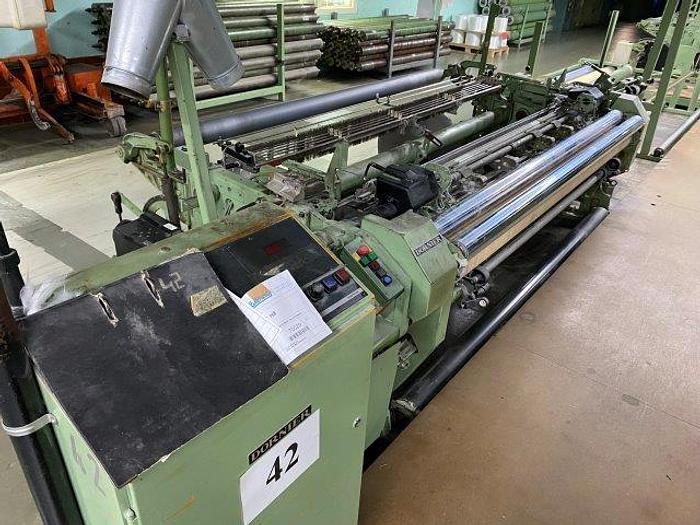

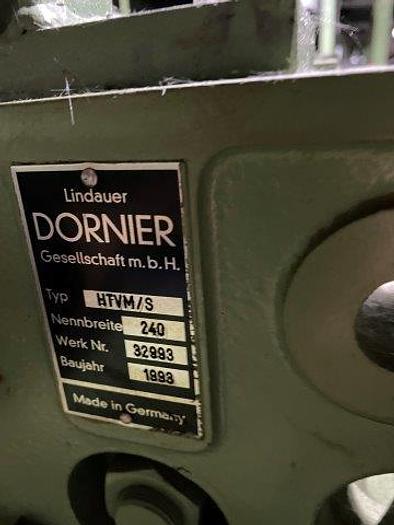

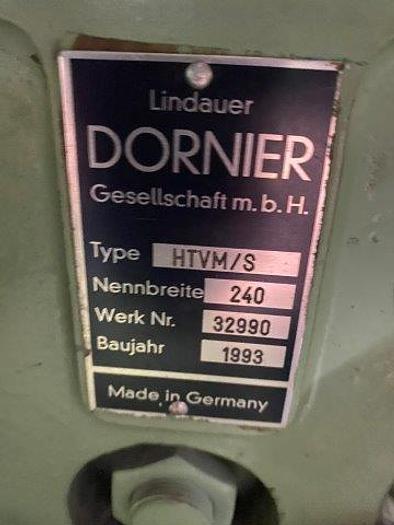

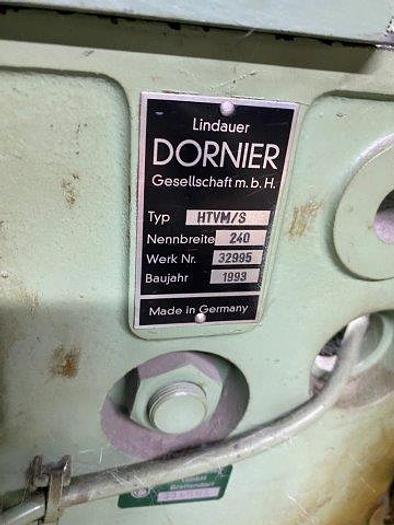

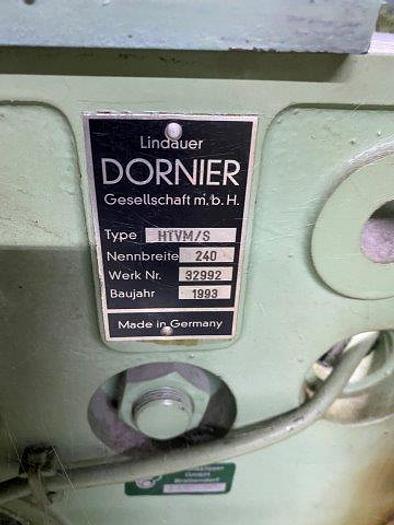

c)     09 DORNIER RAPIER LOOMS, type HTV M/S – 240

year 1992 (3) and 1993 (6), mach. nos. 32.780-33.000 ,

nominal width 240 cm, weft mixer,

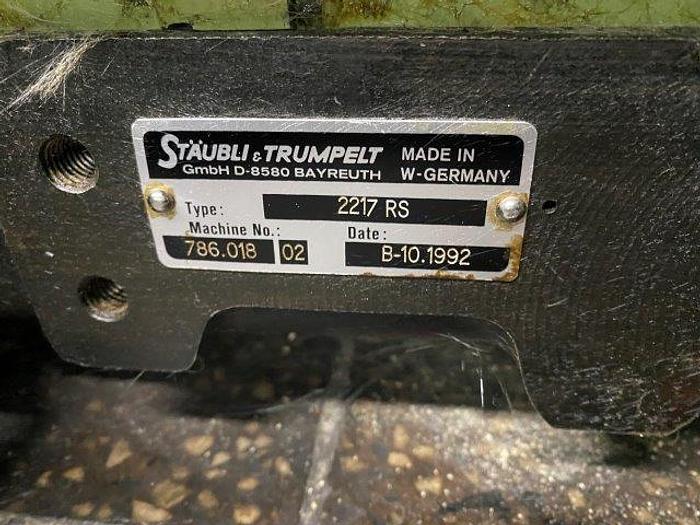

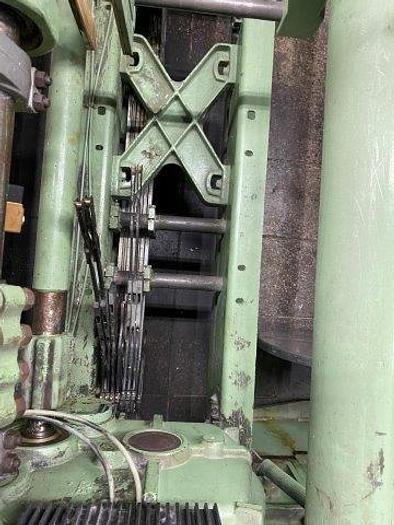

Stäubli dobby 2217 RS - max. capacity 12 shafts – installed 4 shafts (3), and 8 shafts (5)

mech. cloth take up, off-loom take-up,

mech. warp let-off – max. warp beam flange dia. 800 mm,

with accessories*

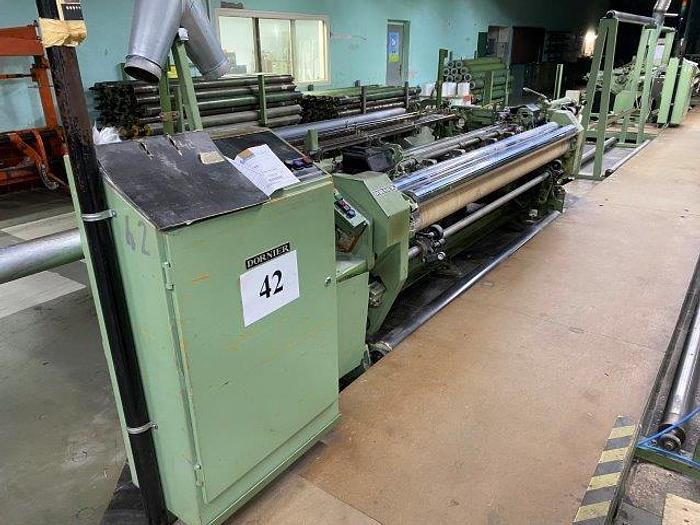

Int. No. 11, 12, 36, 37, 38, 39, 40, 41, 42,

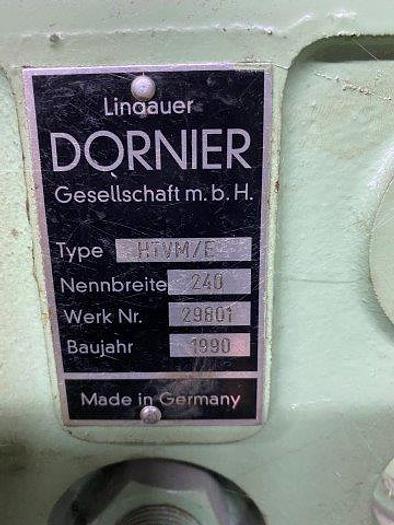

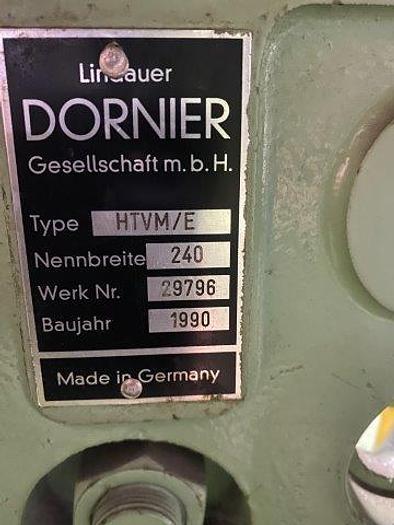

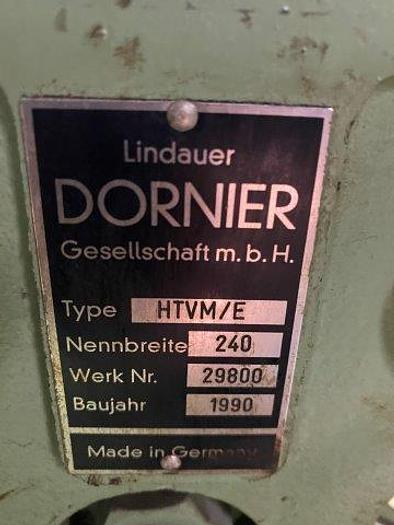

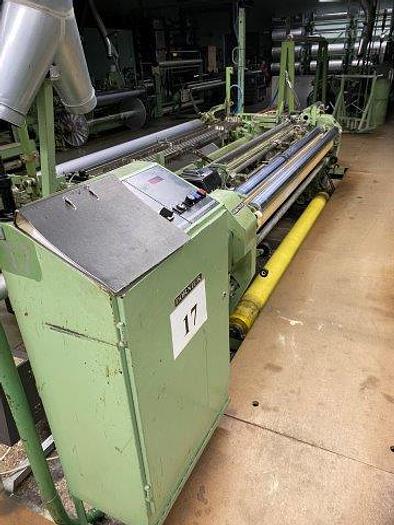

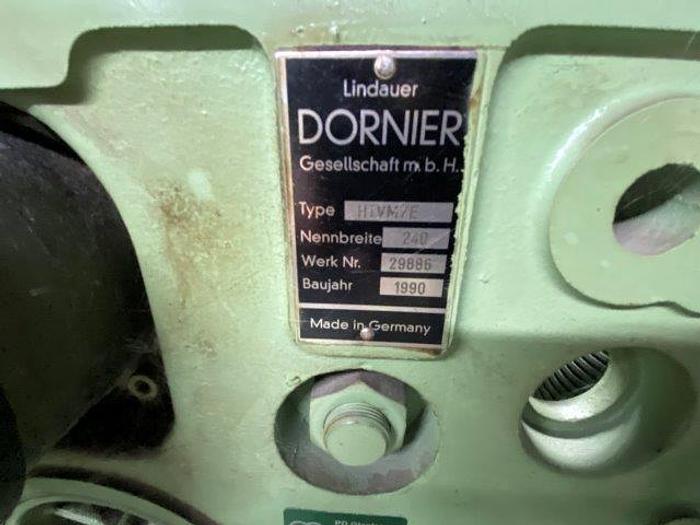

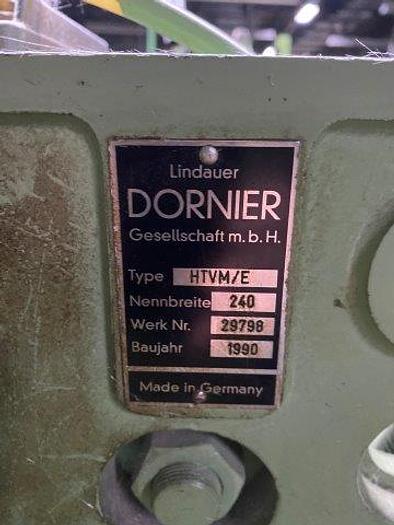

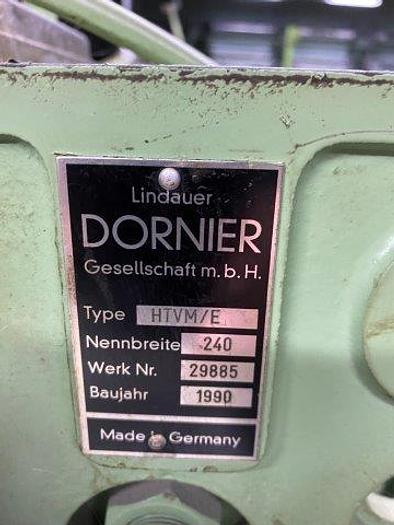

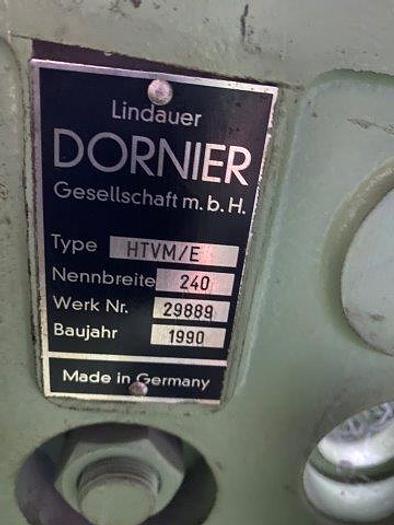

d)    09 DORNIER RAPIER LOOMS, type HTV M/E – 240

year 1990, mach. nos. 29.800 , nominal width 240 cm,

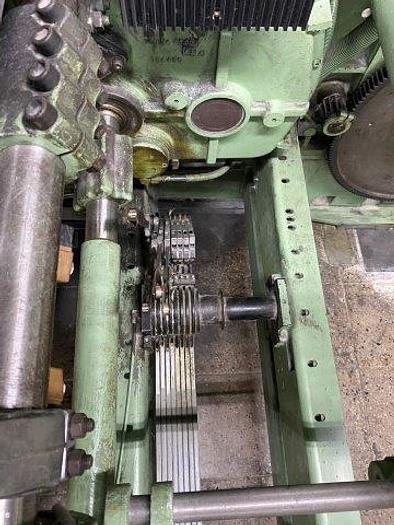

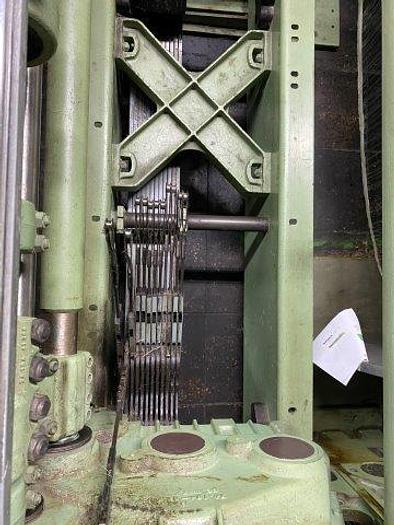

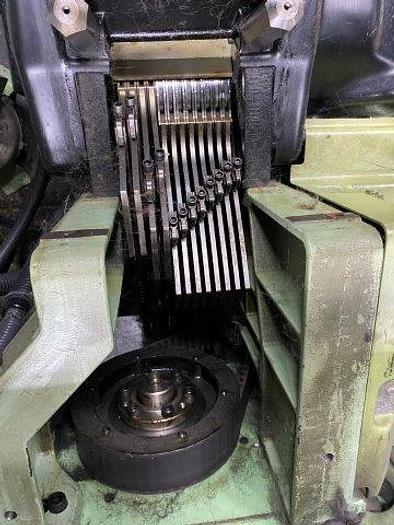

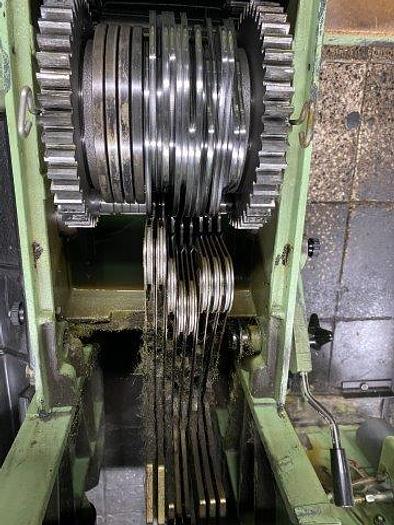

weft mixer, cam motion max. capacity 12 shafts – installed 5 shafts (1), 6 shafts (5) , 8 shafts (3)

mech. cloth take up, off-loom take-up,

mech. warp let-off – max. warp beam flange dia. 800 mm,

with accessories*

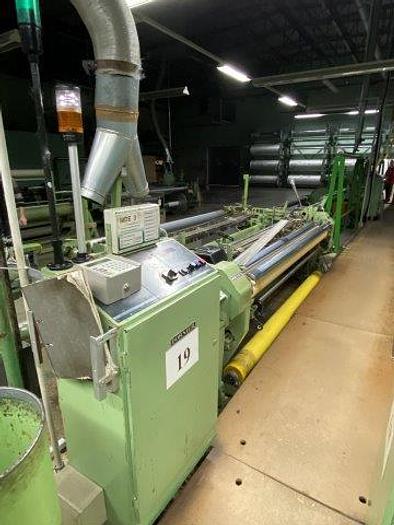

Int. No. 15, 16, 17, 18, 19, 25, 26, 27, 33

e)    02 DORNIER RAPIER LOOMS, type HTV M/E – 240

year 1990, mach. nos. 29.800 , nominal width 240 cm,

weft mixer, cam motion max. capacity 12 shafts – installed 6 shafts (1) and 8 shafts (1)

mech. cloth take up, off-loom take-up,

mech. warp let-off – max. warp beam flange dia. 800 mm,

with accessories*

Int. No. 43, 44

*Accessories per loom with cam motion or dobby:

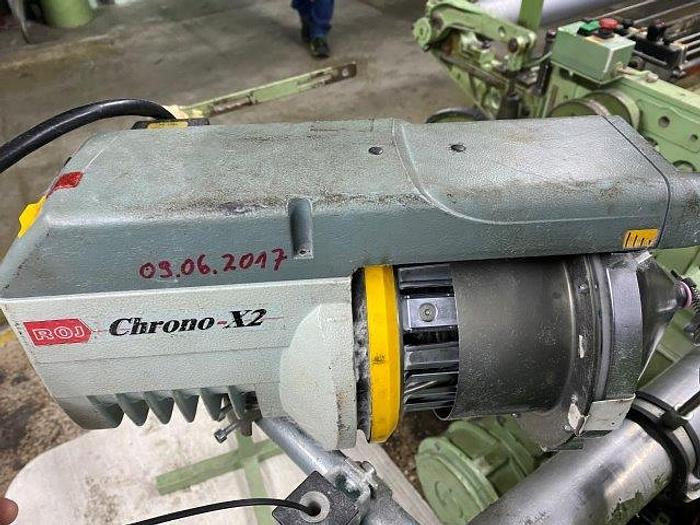

6 heald frames, 1 weft feeder with stand and panel, 1 warp beam

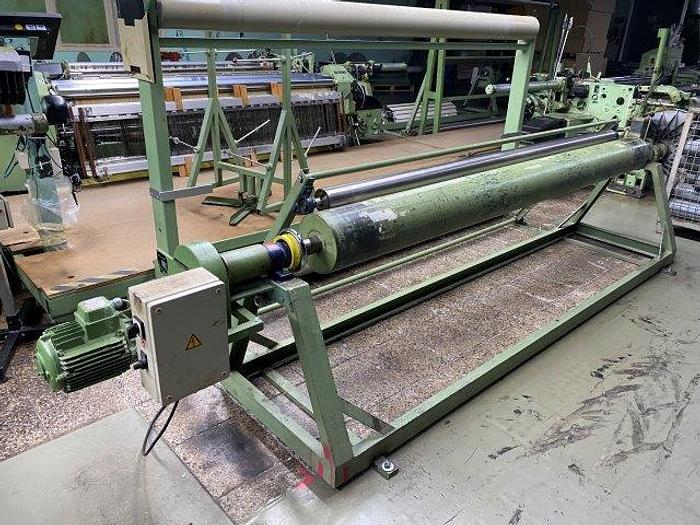

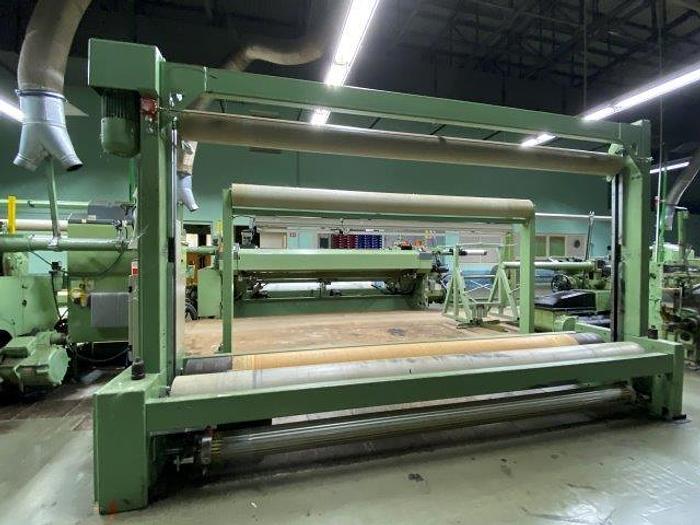

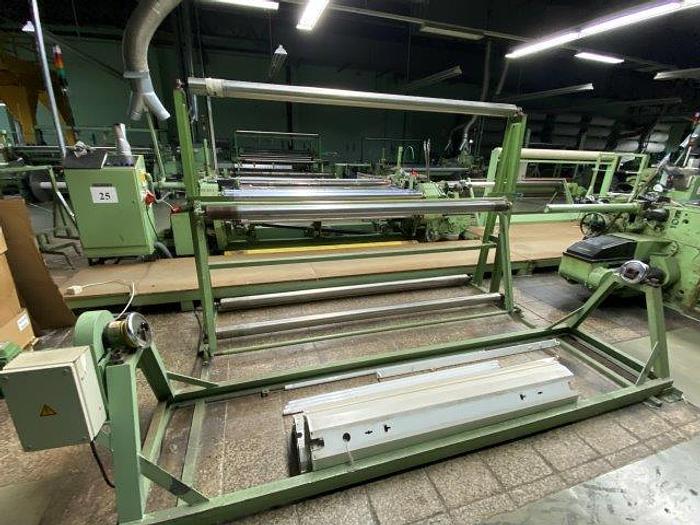

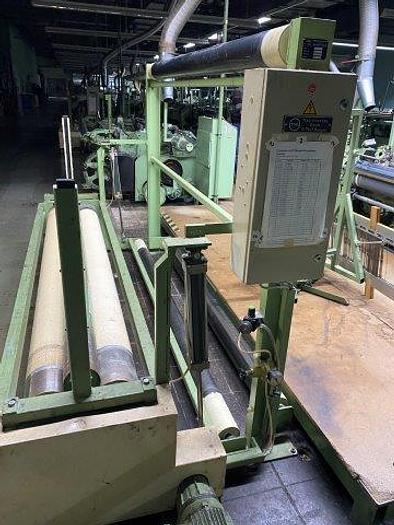

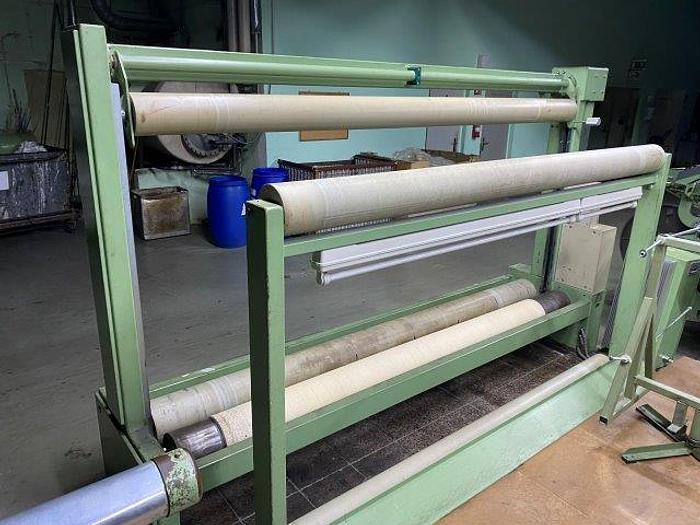

1 ascending batcher or center winding, heddles and droppers

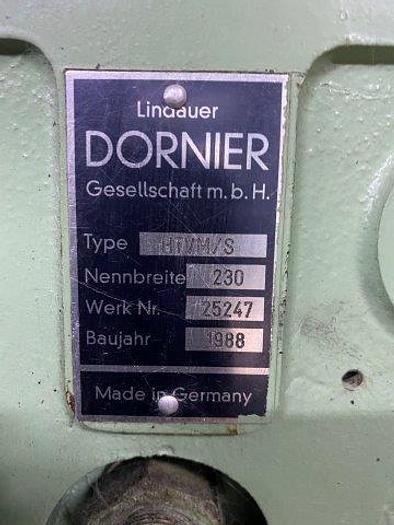

f)      01 DORNIER RAPIER JACQUARD LOOM, type HTV M/S – 230

year 1988, mach. no. 25.247, (conv. to Jacquard)

nominal width 230 cm, weft mixer,

mech. cloth take up, off-loom take-up,

EWL - electropnic warp let-off – max. warp beam flange dia. 800 mm,

prepared for jacquard, with accessories **

Int. No. 03

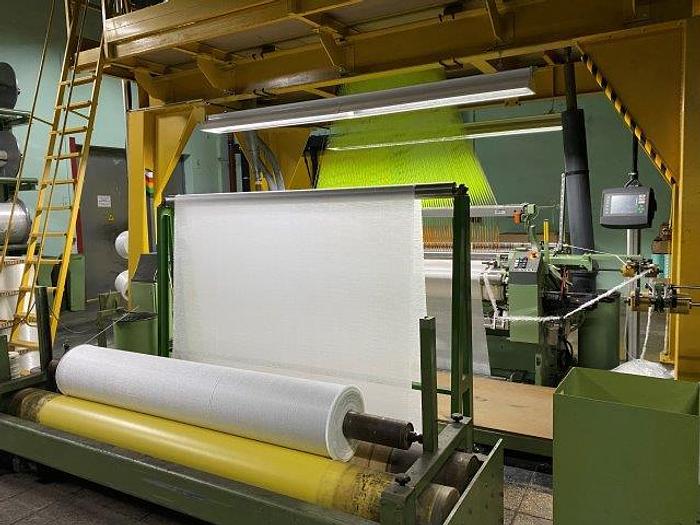

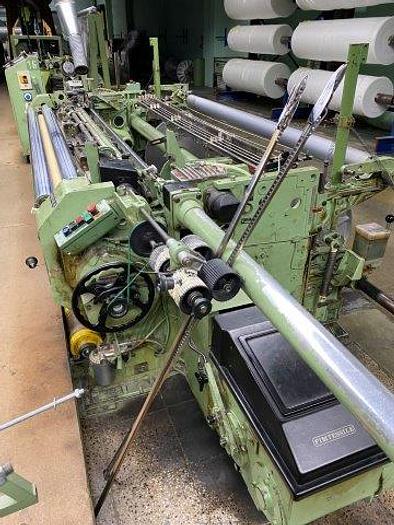

g)    02 DORNIER AIRJET JACQUARD LOOMS, type AWSE2/J – 230 – AT2

year 2003, mach. nos. 76.100, 2 weft colors, AT2 dialog panel

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia. 1.000 mm,

Int. No. 22 + 5546a)

each with

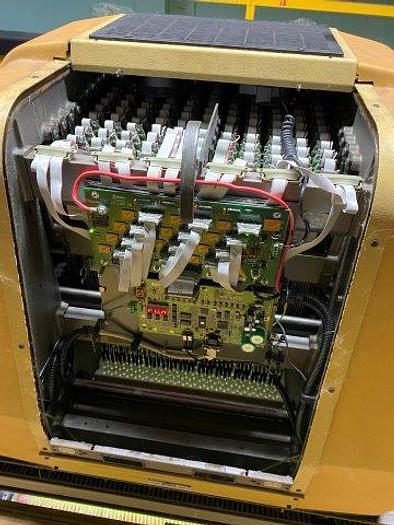

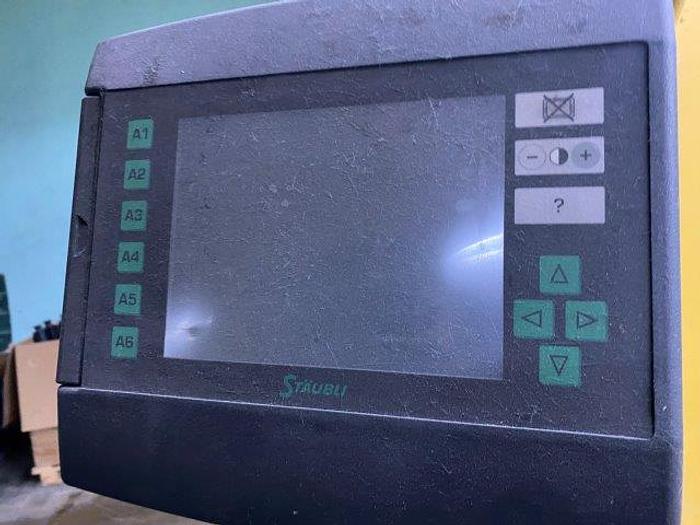

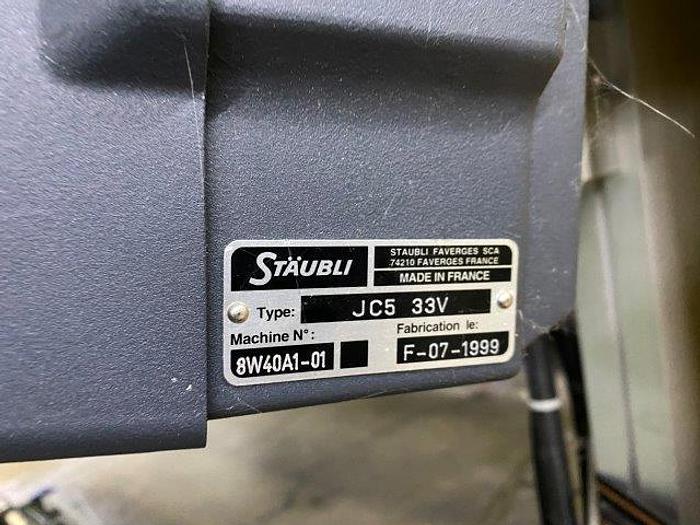

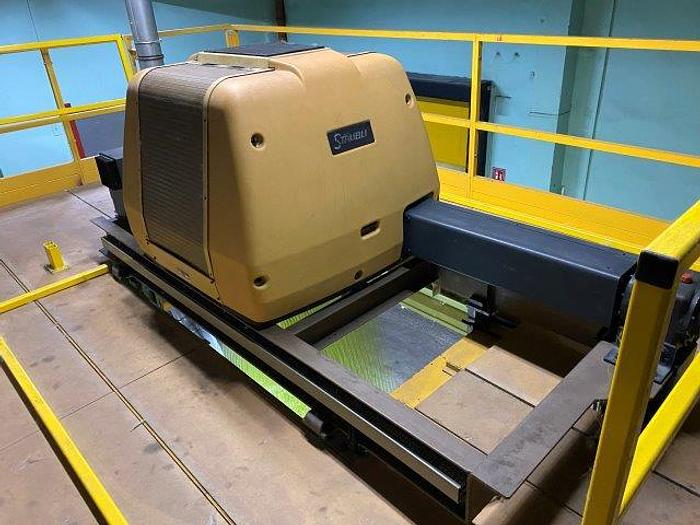

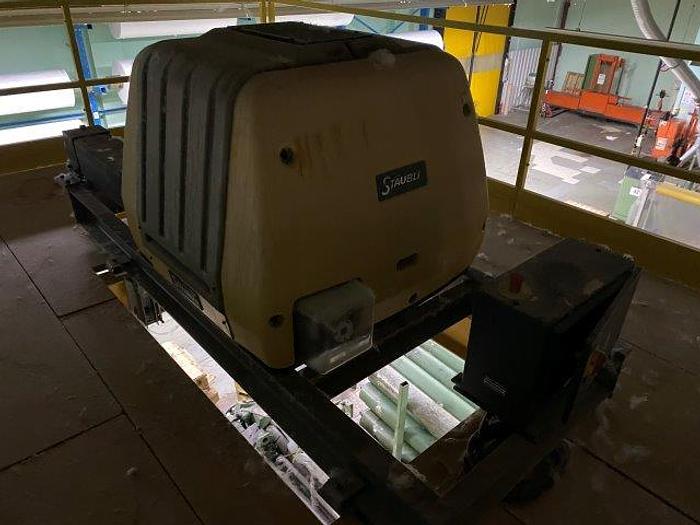

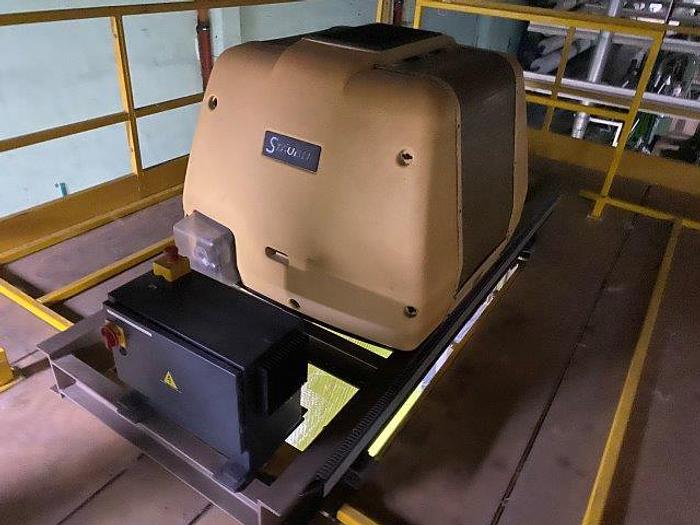

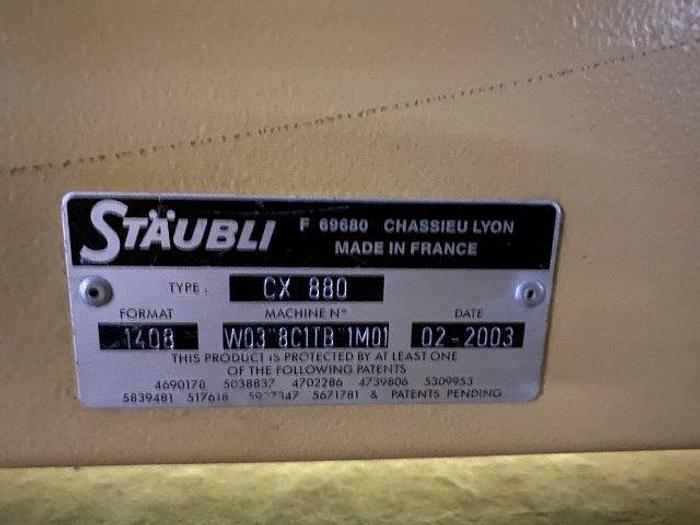

01 Stäubli Jacquard machine CX 870/880 – format 1408 – year 1999/2003 – JC5

complete with harness and indvidual gantry

Int. No. 3, 22

with accessories**

h)   04 DORNIER AIRJET LOOMS type LWV 4/J – 230 - AT1

yoc 1995, nom. width 230 cm, AT1 panel, 4 weft colors,

electronic warp let-off EWL, warp beam flange diam. 1.000 mm, electronic cloth take-up ECT,

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia. 1.000 mm,

thereof 2 looms

with 01 Stäubli jacquard CX-860 / 2688 hooks, Controller JC4, Modules M4  (Int. No. 5545)

Int. (No. 5545 + 5546)

** Accessories per loom with/for jacquard:

1 weft feeder with stand and panel

1 warp beam

1 ascending batcher or center winding

heddles and droppers

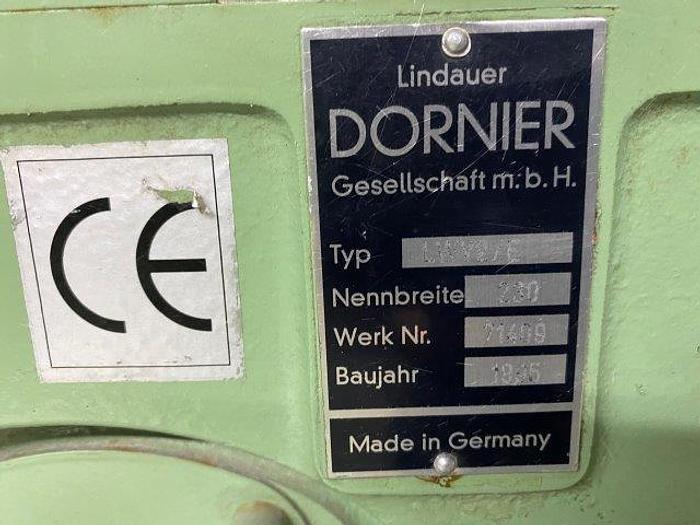

j) 02 DORNIER AIRJET LOOMS, type LWV 2/E – 230 – AT1

year 1995, mach. nos. 71.000,

nominal width 230 cm, 2 weft colors,

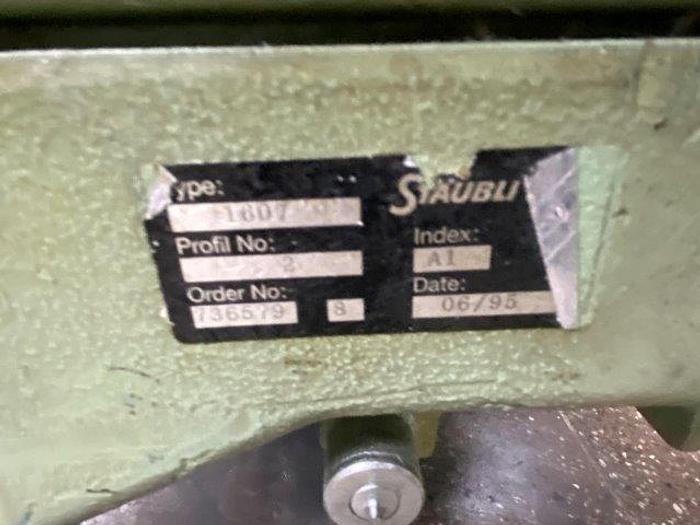

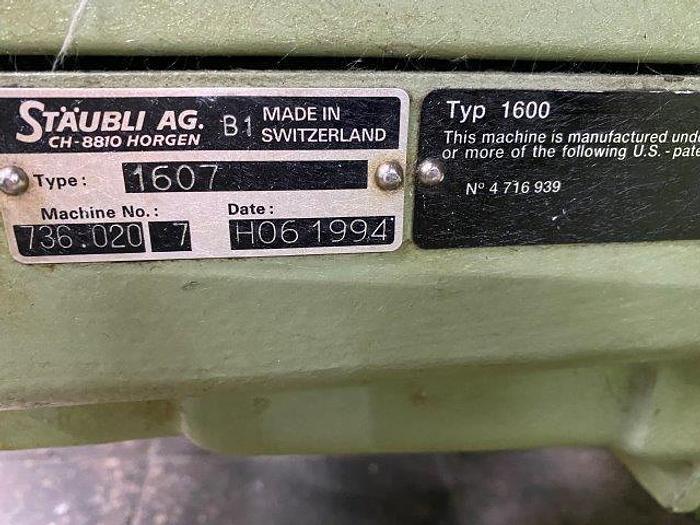

Stäubli cam motion type 1607 – 8/8 shafts installed

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia. 1.000 mm,

with accessories*

Int. No. 20, 21

*Accessories per loom with cam motion or dobby:

6 heald frames, 1 weft feeder with stand and panel, 1 warp beam

1 ascending batcher or center winding, heddles and droppers
