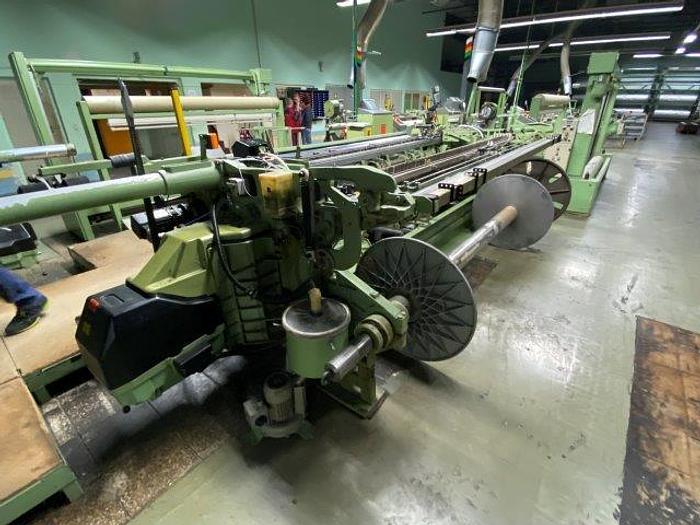

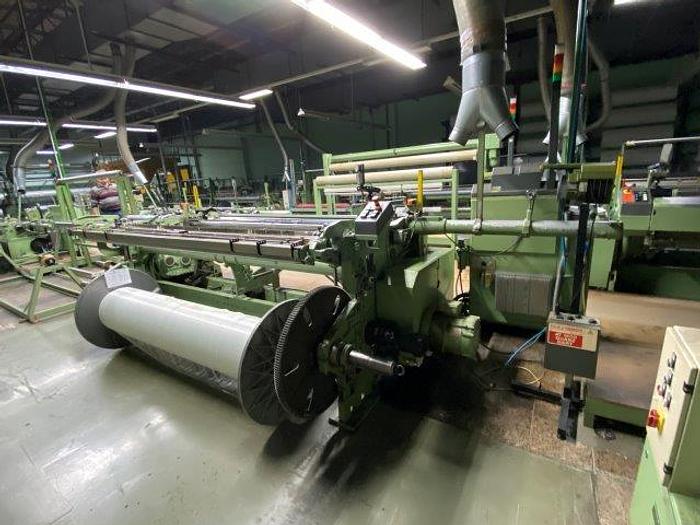

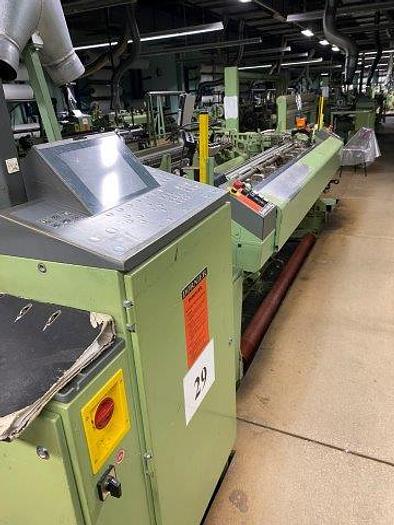

05 DORNIER RAPIER LOOMS, type HTV 2/S – 240 – AT2

Item#005576 b)

05 DORNIER RAPIER LOOMS, type HTV 2/S – 240 – AT2                       Int. No. 28, 29, 30, 31, 32

year 2000, mach. nos. 42.899-42.903 (5),

nominal width 240 cm, AT2 dialog panel,

4 weft colors capacity (equipped with 8 plugs for ECS),

Stäubli electronic dobby 2668/2 – equipped with 12/12 shafts,

ECS – electronic color selector,

ECT – electronic cloth take up, off-loom take-up,

EWL – electronic warp let-off – max. warp beam flange dia.1000 mm,

Air-guided rapier system, with accessories*

*Accessories per loom with cam motion or dobby:

6 heald frames, 1 weft feeder with stand and panel, 1 warp beam

1 ascending batcher or center winding, heddles and droppers

Please see and download further pictures here:

https://www.dropbox.com/sh/n0wsbnqjbjcobde/AAAsVmK6dpifTNBiO7RfleKTa?dl=0
