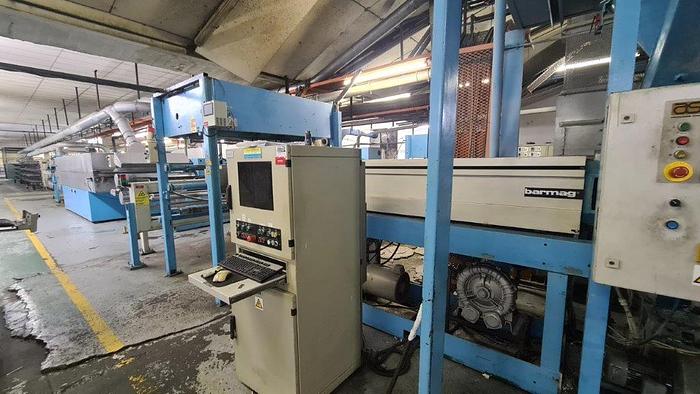

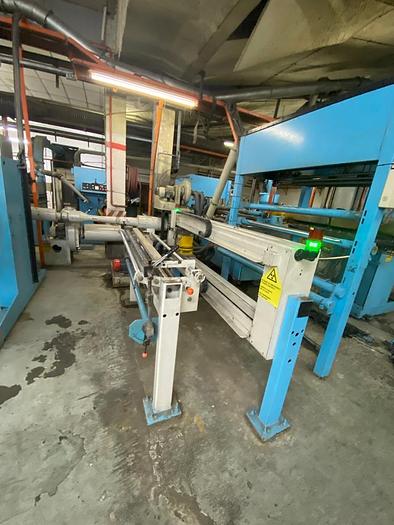

COMPLETE BARMAG PP/PE TAPE EXTRUSION LINE, 2003 Type: Barmag FB9-1300-WS/HT

COMPLETE BARMAG PP/PE TAPE EXTRUSION LINE, 2003

Type: Barmag FB9-1300-WS/HT

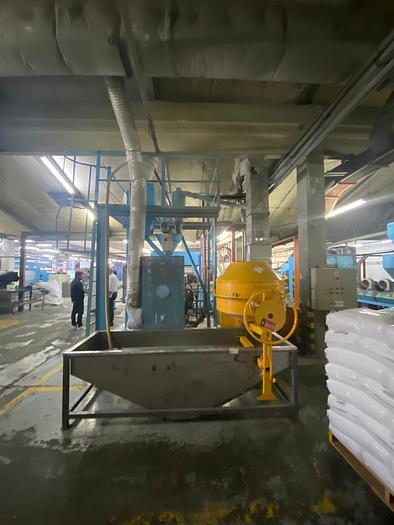

Motorize Mixer – 100 kgs per mix capacity

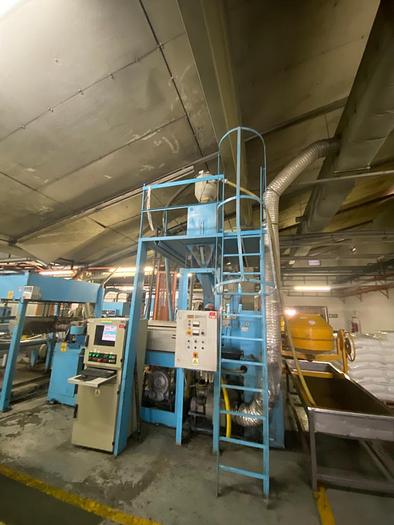

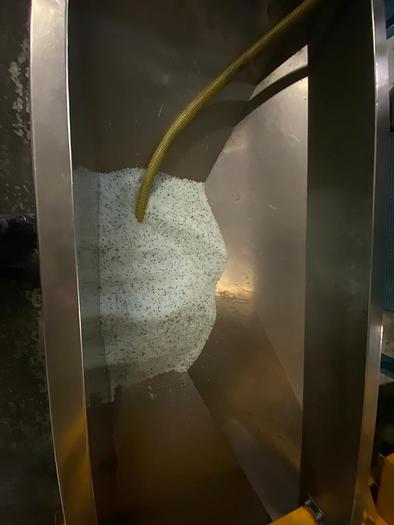

Dosing unit – Hopper 200 kgs capacity, sensor operated, vacuum type

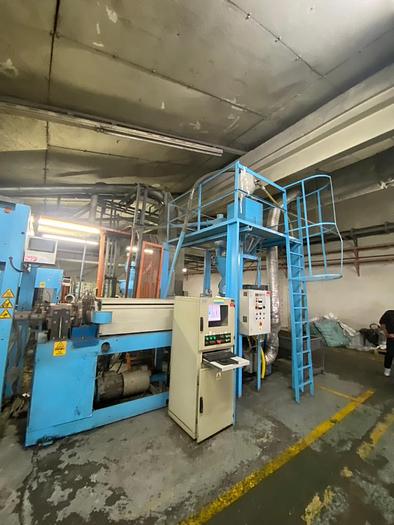

Main Motor/drive – Barmag, 3 phase, 190KW

Screw and Barrel – Ave 6000 kgs/24h capacity, Polypropylene

Die – Hanger type, 1340 mm Plastic flow width

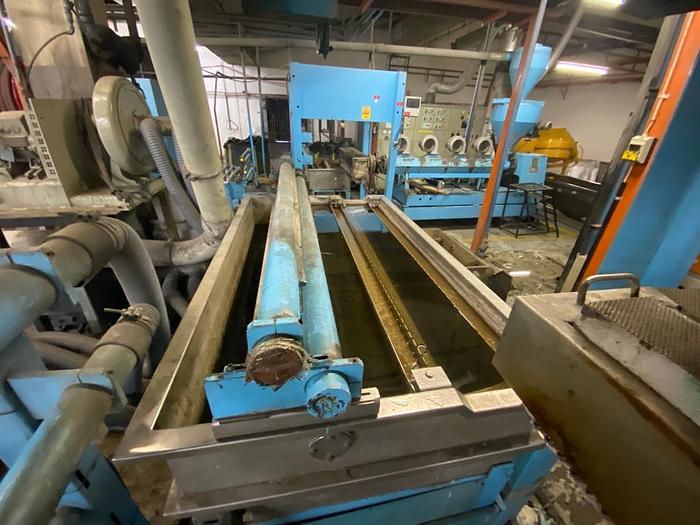

Water bath – Cooling system, closed circuit 1000 L capacity

Cutting device – 1340 mm Plastic flow width capacity, ring tape spacers

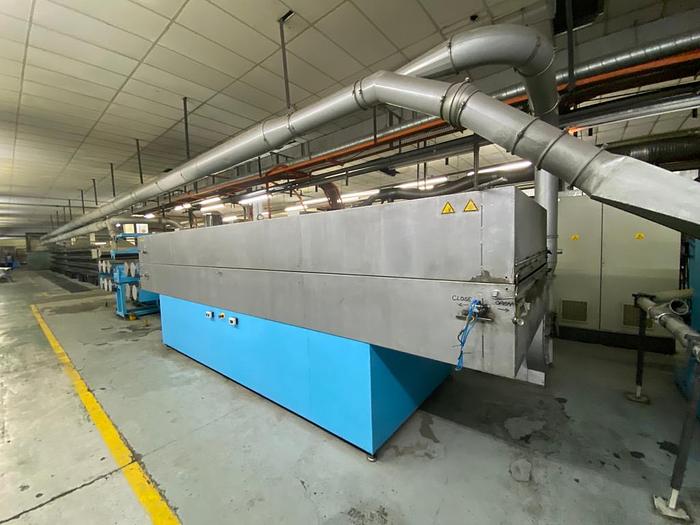

Oven – Hot air blower type, 90KW

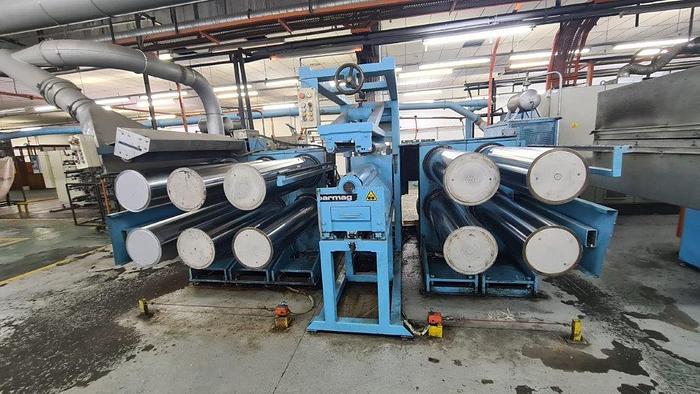

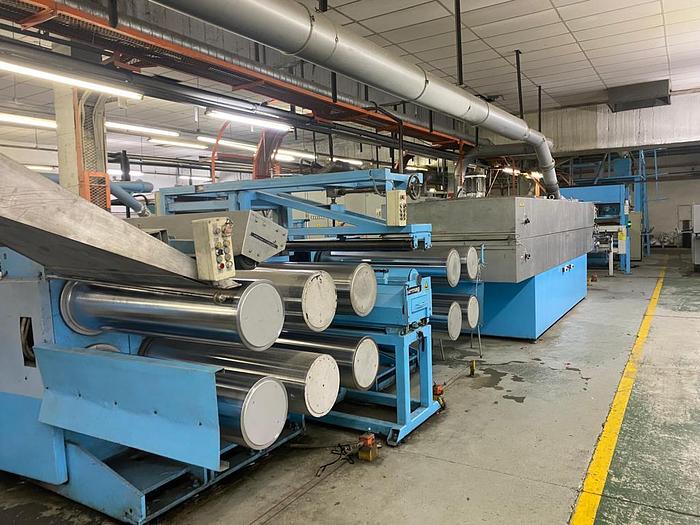

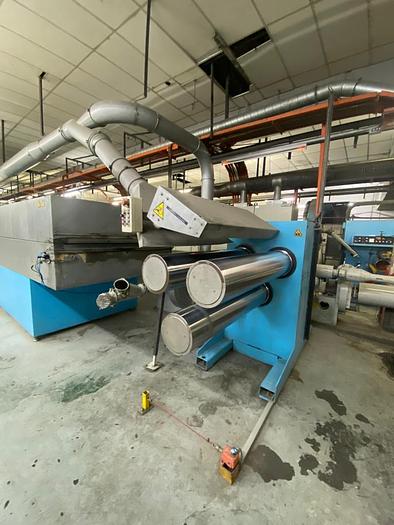

Goddets – 2 x segment godet from stretching unit to annealing 4 and 6 x rollers, oil heated, chill roller cooling system

Full Fibrilator system – needle roller capacity length 1300mm

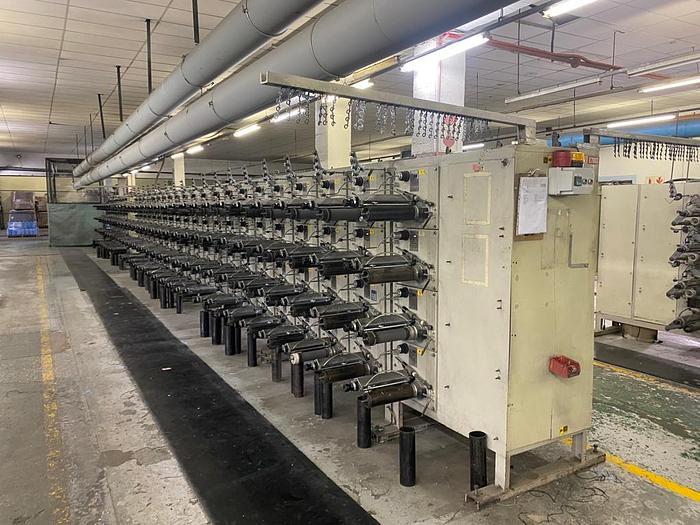

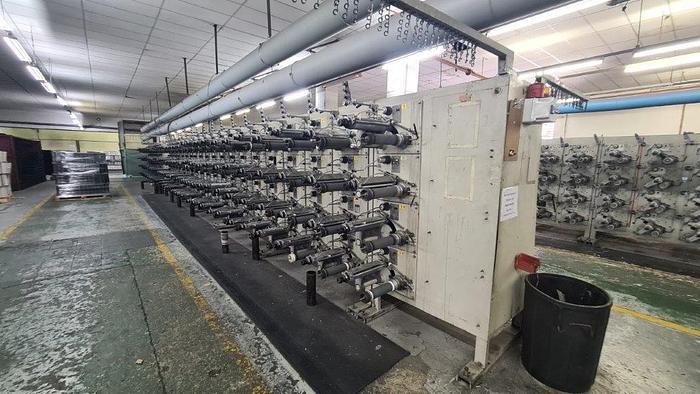

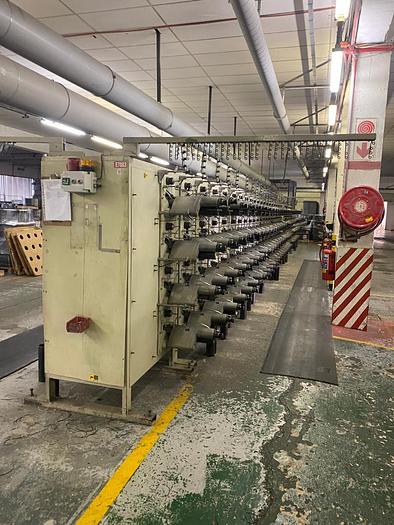

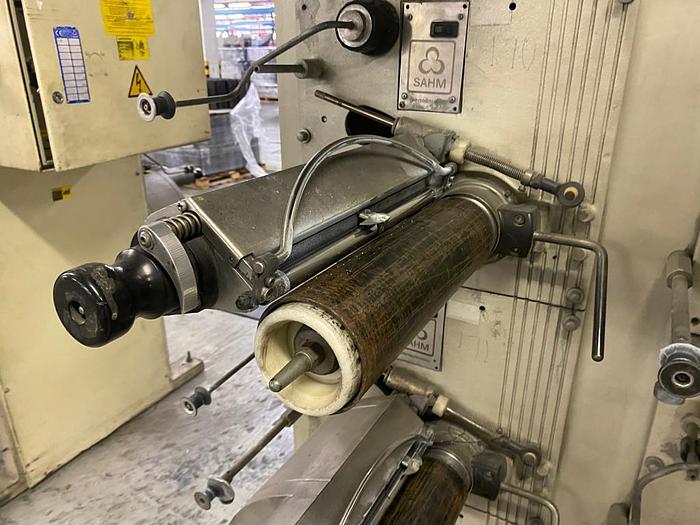

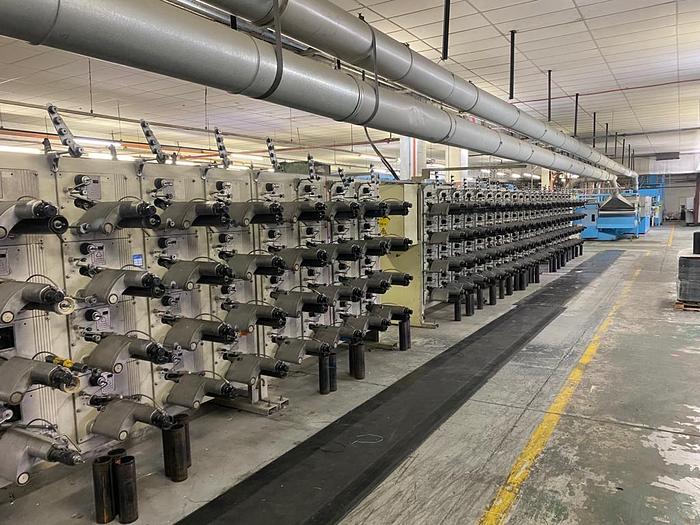

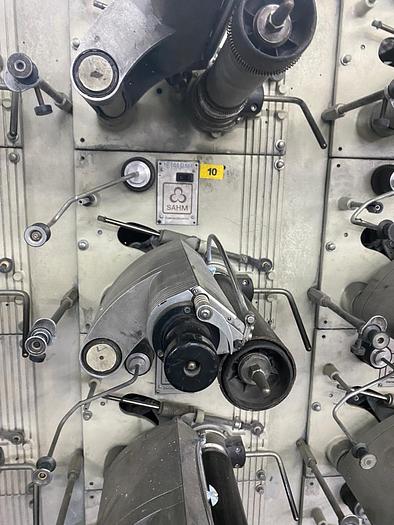

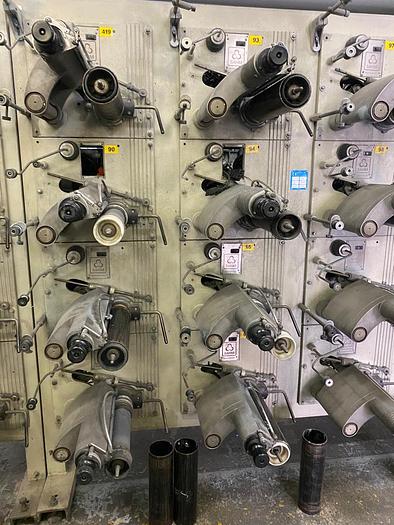

Winder Bank – Sahm winders 240E (2001 manufactured), 232 individual winders

Tape Suction Unit – 2 x motor covering 1st godet to the last, 2 x entry

Cutting mill/ chipper unit – 1.9 KW rotter type blades single feed to hopper

Thickness control unit – Beta control (2003 manufactured), full software program

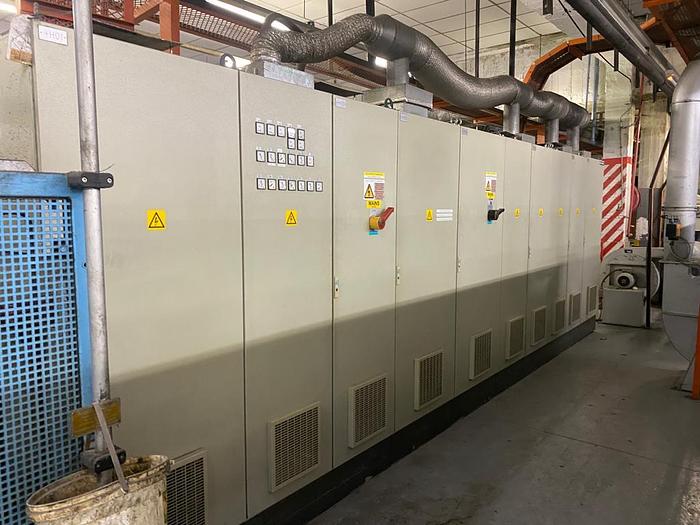

Barmag Full monitoring and control system software
