Karl Mayer Direct Warper and Rotal Sizing Machine

Item#005725

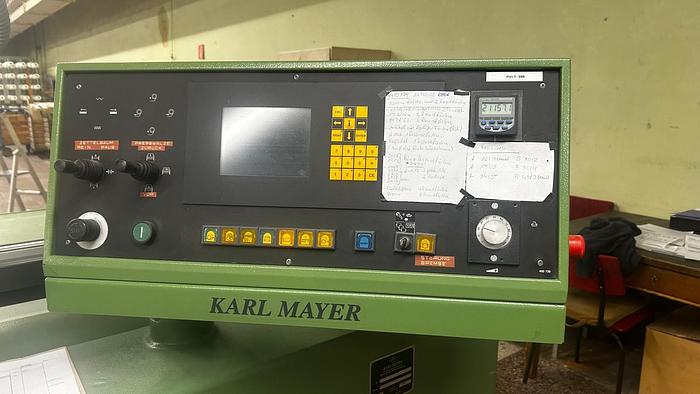

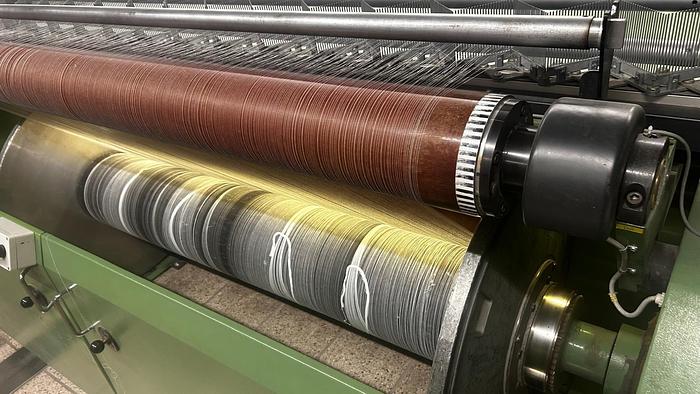

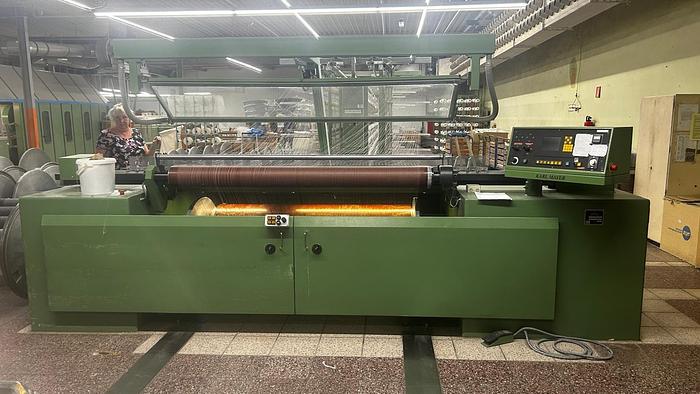

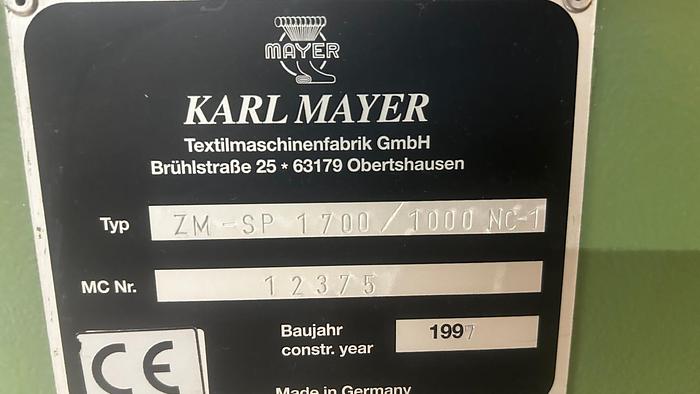

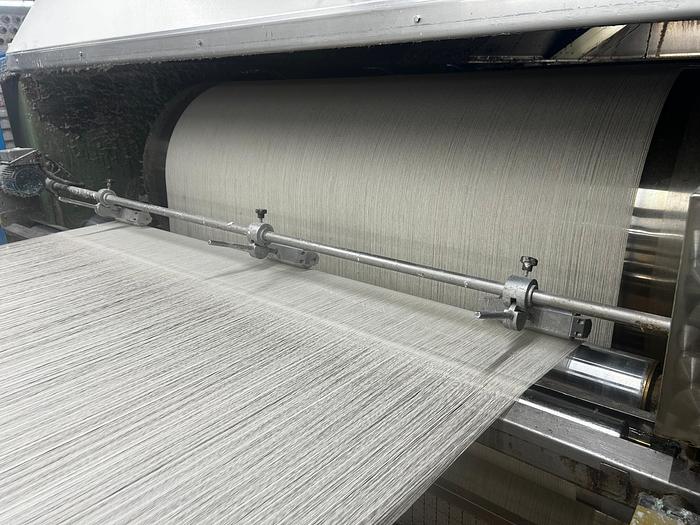

a) 01 Karl Mayer Direct Warper – ZM – SP 1700/1000

year 1997, working width 170 cm,

max. beam flange diam. 1.016 mm

with

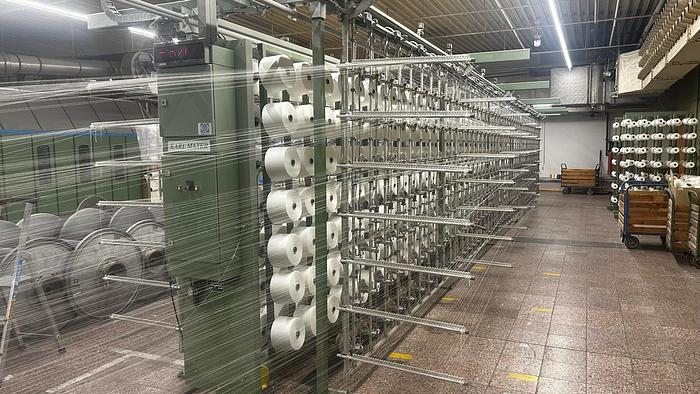

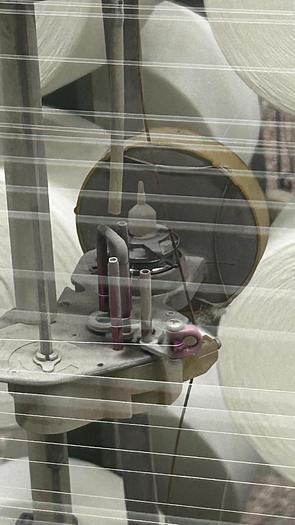

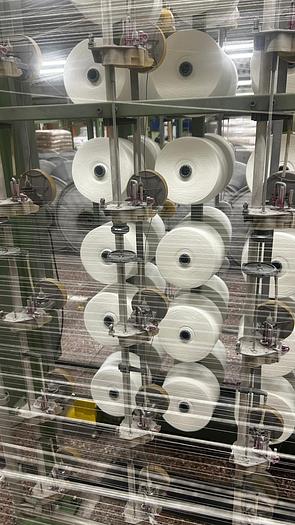

01 Karl Mayer warping creel, H-type, 630 creeling positions

disc brakes, electr. stop motion,

pitch 30 cm – adjustable

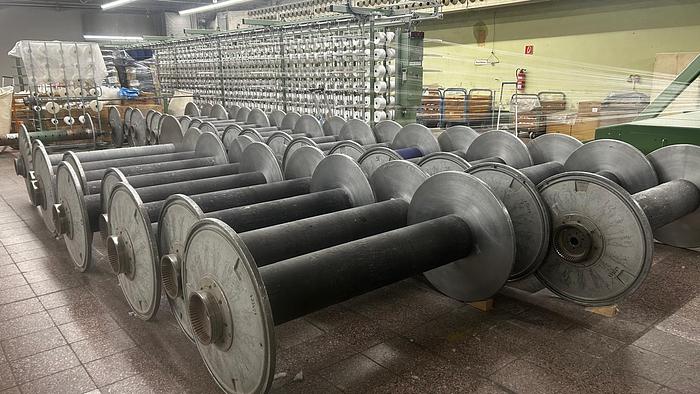

abt. 60-70 fractional beams (for direct warper and sizing)

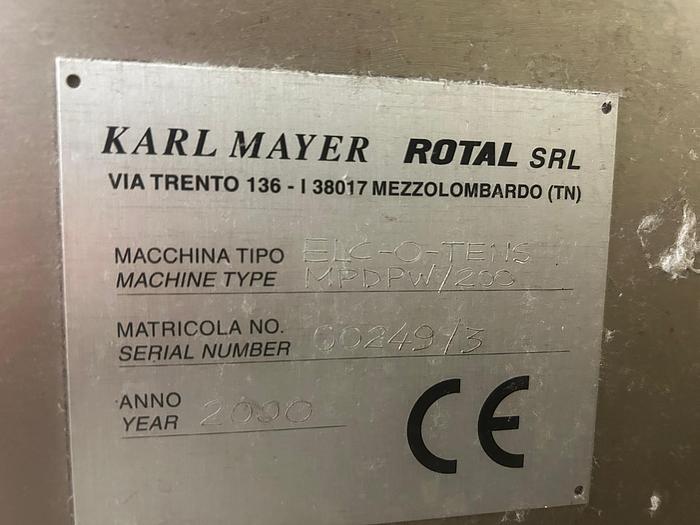

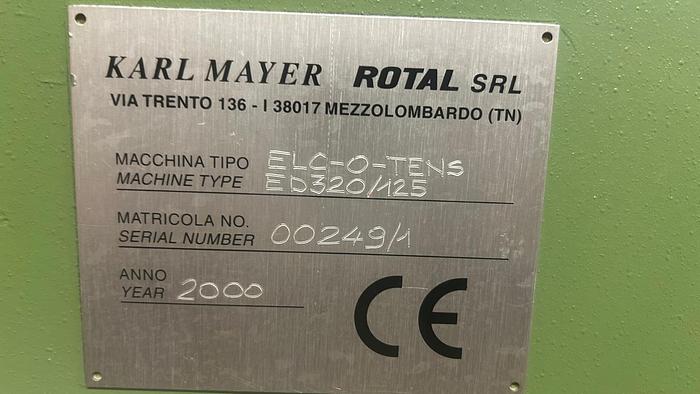

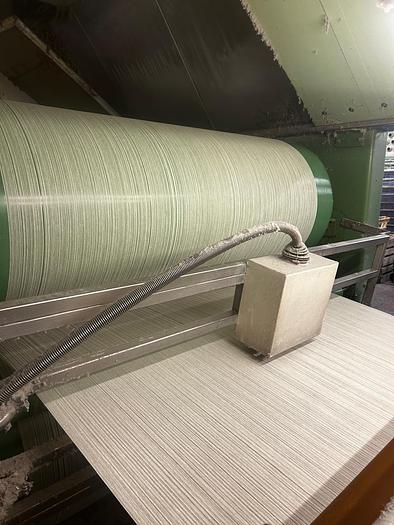

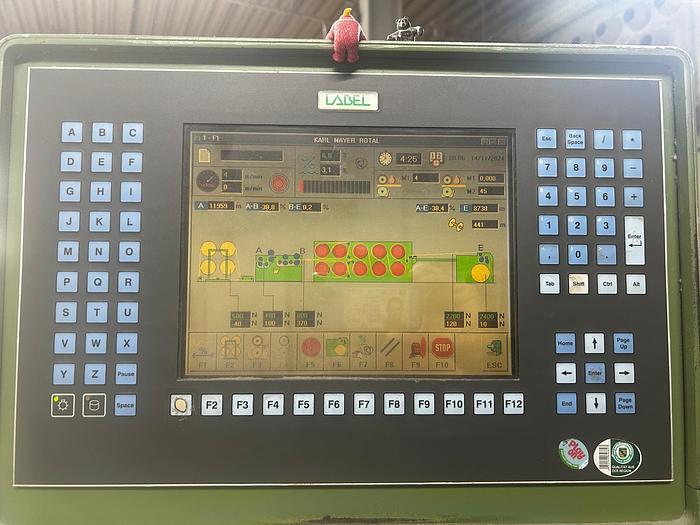

b) 01 Karl Mayer Rotal Sizing machine,  type ELC-O-TENS

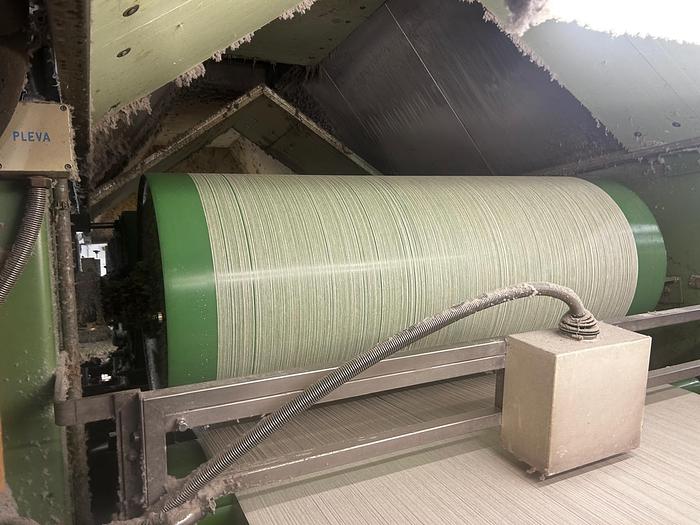

year 2000, with Pleva humidity and tension control,

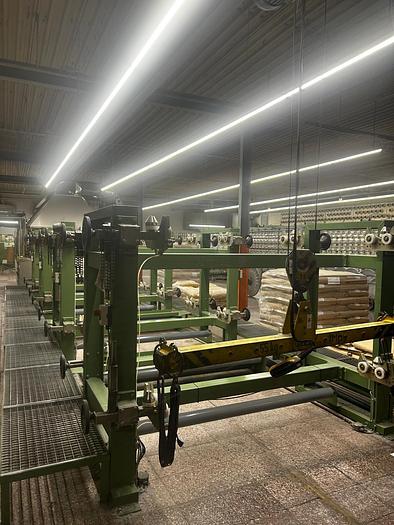

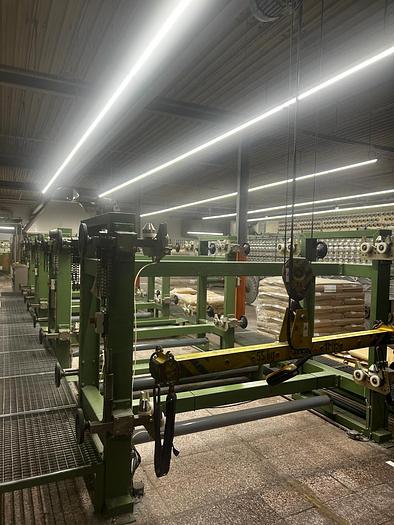

warp beam creel

for max. 16 warp beams

nom. working width 170 cm

max. beam flange Ø 1.016 mm

pneum. Brakes

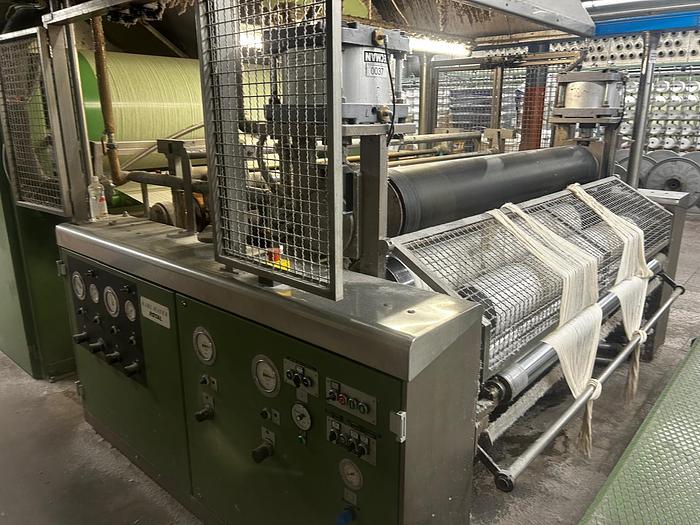

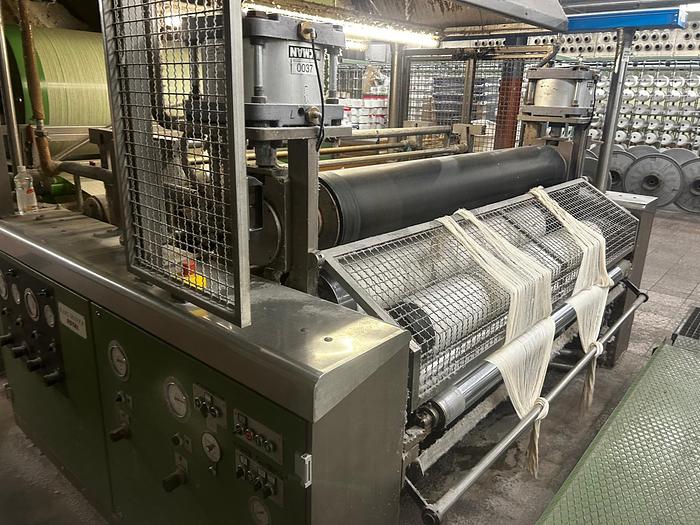

1 sizing double trough

nom. working width 170 cm

pre-wetting

double dip and squeeze roller pairs

Cylinder Dryer

10 drying cylinder Ø 800 mm

partitioning field  abt. 4,5 mtrs.

Waxing device

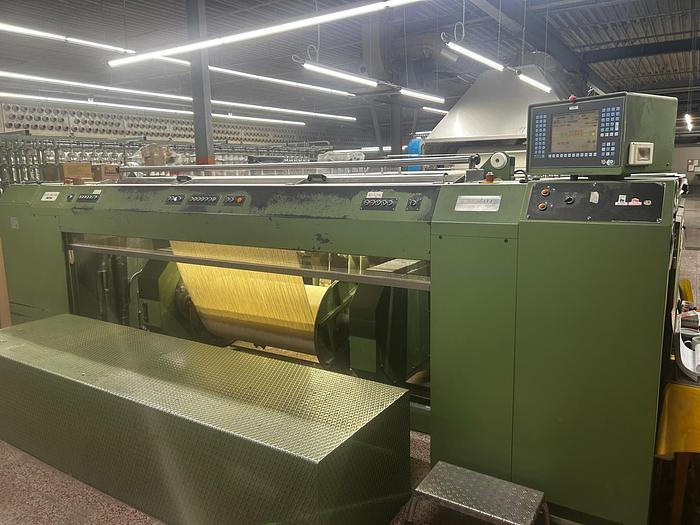

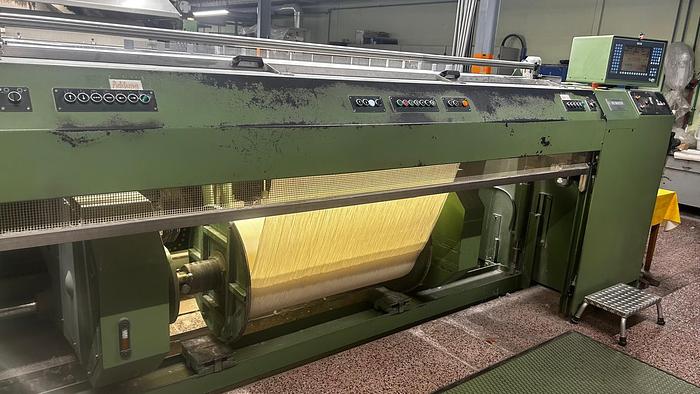

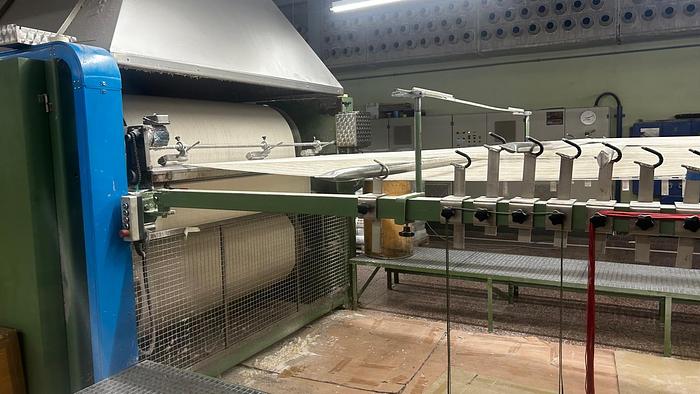

Beaming machine / headstock

max. nom. working width 240 cm

max. beam flange Ø 1100 mm

speed up to 140 m/min

beam pressure device

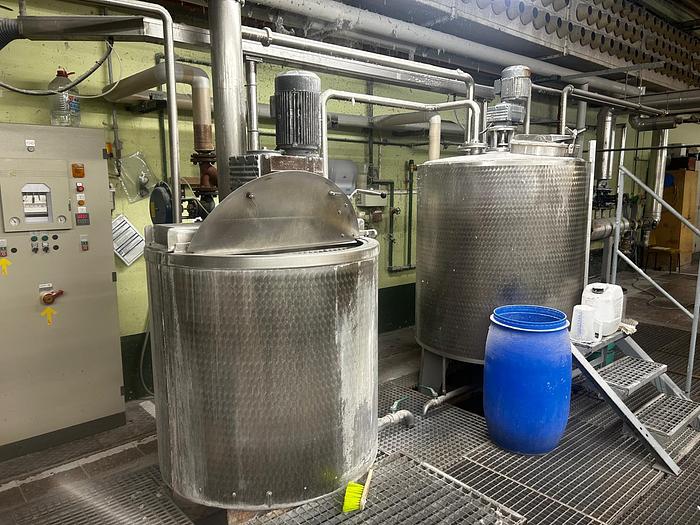

Size kitchen

turbo cooker

storage tank
