Polypropylene Tape Line Extruder 15 tons Capacity/Day

Verkauft

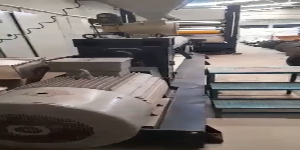

Polypropylene Tape Line Extruder 15 tons Capacity/Day

Standort:Europa

Beschreibung

Item#005588

Tape Line Extruder


For the production of PP tapes

Model: SJMS-Z120×33-1600×8

Specially Designed “ Two Stage Stretching”


Including :

264 spindles of inverter winders

Model: SHW-230, ¢35x218 mm

With Max.Line Speed: 500m/min


Main motor:

AC motor, Siemens ( China made) , driven by Inverter of Telemechanique / France

Melt pump : Maag, Switzerland

Processor Control: Austria

4800 pieces winding rolls

---------------------

TECHNICAL DATA:

Die width 1600 mm

Net working width 1450 mm

Operating line speed max. 500m/min.

Melting capacity max. 600 kg/hr (PP material)

Total installed capacity 390 kw

Power consumption Approx.235kw (Including 264 spindles)


The system is designed for the production of tapes for variety of applications mainly stretched tapes for packaging. The machines can be equipped at an extra cost to produce fibrillated tapes, folded tapes, low shrinkage tapes etc.


Infrastructure facilities to be provided by customer:

According to the specification of machine layout plans, the customer has to provide: foundation, of a plain concrete floor with a load of 2500 kg/m2, mains input, cooling water and compressed air supply


TECHNICAL SCHEDULE

The system mainly consists of:

EXTRUDER, TYPE Z120.33D

The extruder is designed clearly and ergonomically to ensure a comfortable handling and quick maintenance.

Completely mounted on a common and strong base/ground frame.

Main drive by AC Motor, Siemens ( China), drived by the inverter of Telemecanique

Bimetallic barrel with watercooled feeding zone

Incl. air cooling and heating equipment.

Wear resistant feed screw and screw-cylinder

With special mixing and homogenization zones.

Extruder melting capacity with reference material PP HC115FB from Messrs. Borealls AG., max.600kg/hr

Working range for common PP raffia grade, with MFI approx. 3-5 g/10min.


TECHNICAL DATA:

Screw diameter D= 120 mm

Screw length L= 33 D

Screw speed n= 0-120 rpm

Screw and barrel material 38 CrMoAl , nitride hardened treatment

No. of heating zones 7

Heating capacity approx. 42 kw

Main drive motor power 160 kw


PROCESSOR CONTROL

All control loops are centrally managed.

The temperature control operates with automatic optimization which ensures a quick heating of the line.

All driving units are communication with the computer programmable control via a serial POWER LINK by which a high precision and short cycle times are obtained.


The following functions are performed:

The recipe managerment, the alarm managerment, the issue of reports for machine parameters(speeds, temperatures, stretching ratios).


The hardware consists of an industrial PC with display or screen as well as a computer programmable control.


Advantages:

All machine parameters for different tape qualities can be stored in the recipe management and can be called up immediately upon request. This allows the exact reproduction of a quality tape already supplied.


The control can be networked with a central data management system.

The control ensures also a precise production recording. Reasons for faults can be found easily.


TEMPERATURE CONTROLLED LOCK-OUT DEVICE (Only available in PC control system)

For the main drive motor to protect the extruder, filter and flat-die against cold start up


AUTOMATIC FILTER SYSTEM

Arranged between the extruder and flat die for filtering out the impurities of the melt, equipped with heating element.


Filter screen feeding is regulated either pressure-dependent(automatic operation) or manually via a temperature and time controlled heating element.


With facility for taking up 10 meters of screen band. Working pressure max.30 Mpa depending on raw material to be used.


TECHNICAL DATA

Type Automatic screen band/belt filter system

Heating capacity 4kw


MELT PRESSURE GAUGE

Arranged upstream of the filter, and combined melt pressure/melt temperature gauge upstream of the flat die with readout on the central control panel of the extruder


With pressure indicator with two level contacts, one for operating a sound signal and the other for switching off the main drive motor.


Measuring range: 0 - 500 bar.

Temperature max. 400°C

With melt temperature indicator for a maximum of 400°C.


MELT PUMP

TECHNICAL DATA:

Melt pump : Maag, Switzerland

Driving motor power : 11 kw , AC motor, inverter/frequency controlled.

CONNECTING PARTS BETWEEN EXTRUDER AND FLAT DIE

In connection with filter system


Consisting of :

1 connecting flange to flat T-die with one heating zone, one hole for melt temperature gauge(thermo-couple)

1 fixture for flat die


FLAT T-DIE

With flexible die lip, adjustable by means of pressure screws, flow channels rheologically optimized, in “coat hanger”. Including heating, wired ready for connection.


TECHNICAL DATA:

Die width 1500 mm

Net working width 1450 mm

Die lip form Flat

Die lip aperture 0.1-1 mm

Heating capacity 24 kw

Heating zone 7


EDGE TRIM RECYCLING

For direct return of the narrow edge trims of non-stretched film into the extruder, consisting of a film cutting unit , blower , and a transport system carrying the chips back to the extruder hopper.

TECHNICAL DATA

Cutting motor power 1.5 kw

Blower power 2.2 kw

Cutting knife 5 pc per set

Cutting knife type Rotary


WATER QUENCH WITH INTEGRATED HOLDING UNIT

Consisting of

WATER QUENCH TANK

With approx. 1100 ltrs capacity including pump and heat exchanger, adjustable water level

Transverse displacement of the water quench tank by means of rails


TECHNICAL DATA

Film guide roller Φ50x1400 mm , 2pcs

Material Stainless steel pipe


FILM TAKE-OFF

With pneumatically operated nip roller, driven by frequency controlled three-phase motor.


TECHNICAL DATA

Film take-off steel roller Φ215 x1500 mm , 1 pc

Film take-off nip rubber roller Φ160 x1500 mm ,1 pc

Drive motor power 4 kw AC Motor, Italy brand Inverter controlled

Film water-removal nip steel roller Φ160 x1500 mm , 1 pc

Film water-removal nip rubber roller Φ160 x1500 mm , 1 pc

Drive motor power 2.2 kw AC Motor , Italy brand, inverter controlled

Steel roller surface treatment Q235 with chrome plating


SLITTING UNIT ( SIX POSITION SLITTER)

Pneumatically operated , with cross adjustment, film oscillating system to extend the life time of blades.

TECHNICAL DATA

Slitting blade type Shaver/razor

Blade size 38.5 x 18.5 x 0.15 mm

Slitting width Adjustable


TRACTION UNIT & FIRST STRETCHING AND ANNEALING SECTION ( SIX GODETS FRAME)


Consisting of :

2 traction godet: 415mm diameter

2 oil heating stretching godet. 415mm diameter

2 water cooling annealing godet . 415mm diameter

2 nip rubber rollers.

Static electricity eliminator

Frequency controlled three-phase drive , rated power 22 kw = 11 kw×2


TECHNICAL DATA

Traction & Stretching godet Φ415 x 1600 mm , 4 pcs (2 pcs oil heating godets;)

Oil heater 1 unit included.

Nip rubber roller Φ160 x 1580 mm, 1 pc

Drive motor 11kw , AC motor Italy brand, Inverter controlled

Drive method Flat belt

Annealing speed 10 – 100 m/min.

Annealing godet Φ415 x 1600 mm , 2 pcs

(2 pcs water cooling godets;)

Nip rubber roller Φ160 x 1580 mm, 1 pc

Drive motor 11kw , AC motor Italy brand, Inverter controlled

Drive method Flat belt

Annealing speed 10 – 100 m/min.


SIDE FRAME

With integrated control panel, visualized


HOT AIR OVEN

with controlled heating zones.


Consisting of :

Air flow regulation

Upper part to be raised pneumatically

Length of heating channel 6 m


TECHNICAL DATA

Oven type Hot air with double circulation fans

Blower/fan power 11 kw = 5.5 kw x 2

Heating capacity 60kw = 2 x 30 kw

Heating zone 2 zones


SECOND STRETCHING AND ANNEALING SECTION ( SIX GODET FRAME)

Consisting of :

2 standard stretching godet. 415mm diameter

2 oil heating stretching godet. 415mm diameter

2 water cooling annealing godet . 415mm diameter

2 nip rubber rollers.

Static electricity eliminator

Frequency controlled three-phase drive , rated power 22 kw , and additional frequency controlled three-phase drive, rated 9 kw , for individual adjustment of the annealing ratio


TECHNICAL DATA

Stretching godet Φ415 x 1600 mm , 4 pcs

Nip rubber roller Φ160 x 1580 mm, 1 pc

Drive motor 22 kw, AC motor Italy brand, Inverter controlled

Drive method Flat belt

Stretching speed 60 – 500 m/min.

Annealing godet Φ415 x 1600 mm , 2 pcs

(2 pcs oil heating godets; 2 pcs of water cooling godets)

Oil heater 1 unit included.

Nip rubber roller Φ160 x 1580 mm, 1 pc

Drive motor 9 kw , AC motor Italy brand, Inverter controlled

Drive method Flat belt

Annealing speed 60 – 500 m/min.


TAPE EXTRACTION – VACUUM SYSTEM

Designed as start-up aid and broken tape sucking/aspiration catcher at holding and annealing unit, mainly consisting of suction nozzles, feed pipes, and a collection box for waste tapes.

TECHNICAL DATA

Type Sucking/aspirating by blower/fun

Blower/fan power 7.5 kw


CONTROL CABINET

With air conditioning, including the complete wiring within the tape line.

INVERTER WINDER, MODEL: SHW-230, φ35X218mm

TECHNICAL DATA:

Standard version

Number of winder head 264 spindles

Tape width 1.8 – 5 mm

Winding speed up to 450 m/min

Traverse length 203 mm

Standard winding ratio 1: 12.6

Optional winding ratio on special request


Core dimensions of warp and weft bobbins

Inside diameter 35 mm

Outside diameter 37.2 mm

Length 218 mm

Max. bobbin diameter 160 mm

Normal motor rating per winder 0.12 kw

Spezifikationen

Hersteller-
ModellPolypropylene Tape Line Extruder
Jahr2012
ZustandGebraucht
Lagernummer005588
